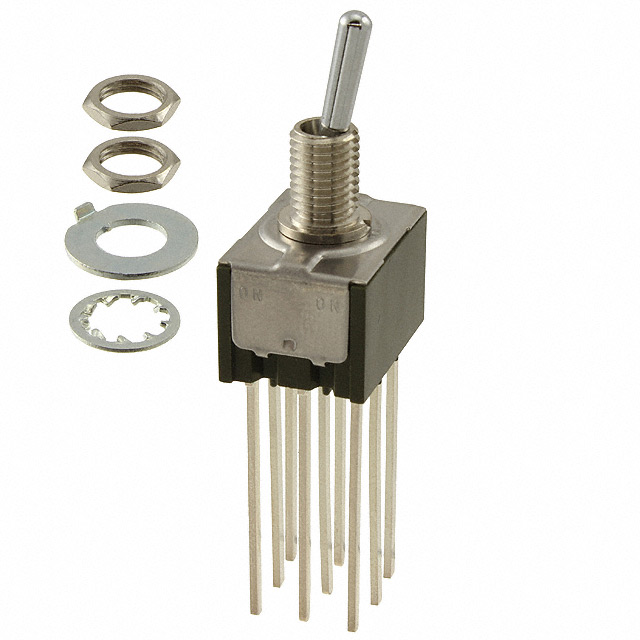

M2032SS4W07

Obsolete

NKK Switches

SWITCH TOGGLE 3PDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2032SS4W07

Obsolete

NKK Switches

SWITCH TOGGLE 3PDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2032SS4W07

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	3PDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Wire Wrap
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2032SS Series

Part	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Voltage Rating - AC	Bushing Thread	Features	Termination Style	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Electrical Life	Actuator Material	Mounting Type
NKK Switches M2032SS2W30	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	Unthreaded	Epoxy Sealed Terminals	PC Pin	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated	Through Hole Right Angle
NKK Switches M2032SS1G03	0.4 VA	Standard Round	6.5 mm	28 V	28 V	1/4-40	Epoxy Sealed Terminals	PC Pin	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	50000 Cycles	Brass Chrome Plated
NKK Switches M2032SS1W03/CUL	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	1/4-40	Epoxy Sealed Terminals	PC Pin	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS1W03	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	1/4-40	Epoxy Sealed Terminals	PC Pin	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS1A01	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	1/4-40	Epoxy Sealed Terminals	Solder Lug	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS4G01	0.4 VA	Standard Round	6.5 mm	28 V	28 V	M6 x 0.75	Epoxy Sealed Terminals	Solder Lug	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS4W03	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	M6 x 0.75	Epoxy Sealed Terminals	PC Pin	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS4W07	4 A 6 A	Standard Round	6.5 mm	30 V	125 V	M6 x 0.75	Epoxy Sealed Terminals	Wire Wrap	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	25000 Steps	Brass Chrome Plated
NKK Switches M2032SS1G01	0.4 VA	Standard Round	6.5 mm	28 V	28 V	1/4-40	Epoxy Sealed Terminals	Solder Lug	3PDT	On-On	-30 ░C	85 °C	Non-Illuminated	50000 Cycles	Brass Chrome Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.71
		10	$ 17.36
		100	$ 16.22
		250	$ 14.22
		2500	$ 12.64

Description

General part information

M2032SS Series

Toggle Switch 3PDT Panel Mount
