HS2C2F20C

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS CRIMP ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS CRIMP ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C2F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

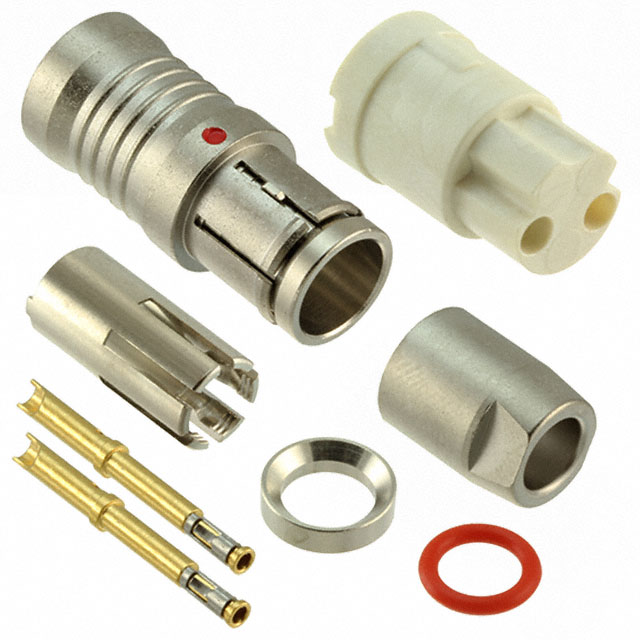

CONN CIRCULAR SKT 2 POS CRIMP ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Mounting Type	Insert Material	Shell Finish	Orientation	Contact Material	Connector Type	Color	Fastening Type	Material Flammability Rating	Shell Material	Termination	Voltage Rating	Primary Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Contact Finish - Mating	Number of Positions	Ingress Protection
Switchcraft Inc. HS2C2F20C	5.49 mm	4.57 mm	0.18 in	0.216 in	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	Electroless Nickel	Keyed	Copper Alloy	Female Sockets, Plug	Silver	Push-Pull	UL94 HF-1	Copper Alloy	Crimp, Solder Cup	125 VAC	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	135 °C	-40 °C	Shielded	Gold	2	IP66, IP67, IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
