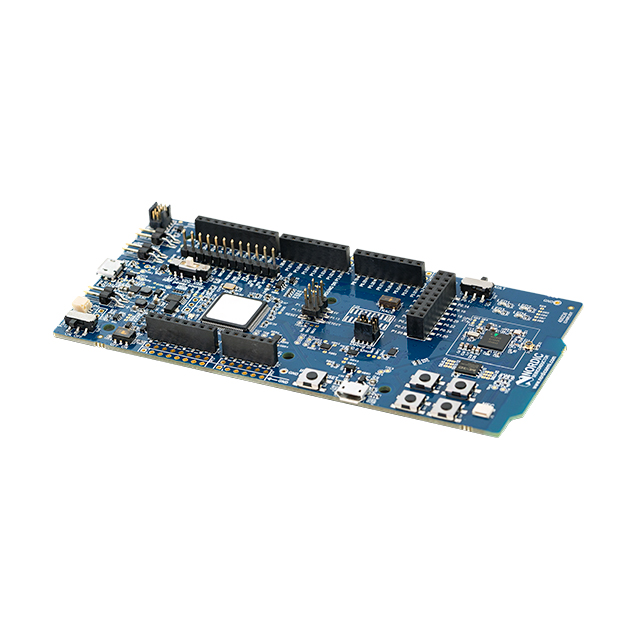

NRF52840-DK

Active

Nordic Semiconductor ASA

EVAL BOARD FOR NRF52840

Search across all available documentation for this part.

Active

Nordic Semiconductor ASA

EVAL BOARD FOR NRF52840

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NRF52840-DK	NRF52840 Series

Current - Receiving	-	6.3 mA
Current - Transmitting	-	16.4 mA
Data Rate (Max)	-	2 Mbps
For Use With/Related Products	nRF52840	nRF52840
Frequency	2.4 GHz	2.4 GHz
GPIO	-	48
Memory Size	-	1 - 256 MB
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	73-VFQFN Dual Rows, Exposed Pad
Power - Output	-	8 dBm
Protocol	-	Bluetooth v5.0
RF Family/Standard	-	Bluetooth, 802.15.4
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	73-QFN (7x7)
Type	ANT, Transceiver, 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE)	ANT, Transceiver, 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), TxRx + MCU
Voltage - Supply	-	5.5 V
Voltage - Supply	-	1.7 V

USB DONGLE NRF52840 PCA10059

Part	Frequency	For Use With/Related Products	Type	Supplied Contents	Power - Output	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Receiving	RF Family/Standard	Data Rate (Max)	GPIO	Protocol	Package / Case	Current - Transmitting	Memory Size
Nordic Semiconductor ASA NRF52840-DONGLE	2.4 GHz	nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Board(s)
Nordic Semiconductor ASA NRF52840-DK	2.4 GHz	nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Board(s)
Nordic Semiconductor ASA NRF52840-PDK	2.4 GHz	nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Board(s)
Nordic Semiconductor ASA NRF52840-QIAA-R	2.4 GHz		TxRx + MCU		8 dBm	73-QFN (7x7)	5.5 V	1.7 V	85 °C	-40 °C	Surface Mount	6.3 mA	802.15.4, Bluetooth	2 Mbps	48	Bluetooth v5.0	73-VFQFN Dual Rows, Exposed Pad	16.4 mA	1 MB, 256 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.00

General part information

nRF52840 - Transceiver; 802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available
