Part	Number of Receivers	Number of Drivers	Package Name	Protocol	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Receiver Hysteresis	Type	Package Width	Package Length	Data Rate	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Inputs	Function	Number of Outputs	Input Type	Output Type	Input	Data Rate (Max)	Output	Delay Time	Current - Supply	Number of Channels	Package / Case	Applications	Signal Conditioning	Capacitance - Input	Interface
Texas Instruments SN65LVDS348DRG4	4	0	16-SOIC	LVDS	3.6 V	3 V	50 mV	Receiver	3.9 mm	0.154 in	560 Mbps	Surface Mount	-40 °C	85 °C
Texas Instruments SN65LV1212DB			28-SSOP		3.6 V	3 V			5.3 mm	0.209 in	400 Mbps	Surface Mount	-40 °C	85 °C	1	Deserializer	10	LVDS	LVDS
Texas Instruments SN65LVP19DRFR			8-WSON		3.6 V	2.375 V		Buffer ReDriver	2 mm	2 mm		Surface Mount	-40 °C	85 °C						PECL	2 Gbps	LVPECL	460 ps	30 mA	1	8-WFDFN Exposed Pad
Texas Instruments SN65LVDS303ZQER			80-BGA MICROSTAR JUNIOR		1.95 V	1.65 V			5 mm	5 mm	810 Mbps	Surface Mount	-40 °C	85 °C	27	Serializer	2	CMOS	LVDS							80-VFBGA
Texas Instruments SN65LVDS2DRG4	1	0	8-SOIC	LVDS	3.6 V	2.4 V		Receiver	3.9 mm	0.154 in	400 Mbps	Surface Mount	-40 °C	85 °C
Texas Instruments SN65LVDS93AZQLR			56-BGA Microstar Junior		3.6 V	3 V			4.5 mm	7 mm	3.78 Gbps	Surface Mount	-40 °C	85 °C	28	Serializer	4	LVTTL	LVDS							56-VFBGA
Texas Instruments SN65LV1224DBR			28-SSOP		3.6 V	3 V			5.3 mm	0.209 in	660 Mbps	Surface Mount	-40 °C	85 °C	1	Deserializer	10	LVDS	LVDS
Texas Instruments SN65LVP16DRFRG4			8-WSON		3.6 V	2.375 V		Buffer ReDriver	2 mm	2 mm		Surface Mount	-40 °C	85 °C						PECL	4 Gbps	LVPECL	460 ps	40 mA	1	8-WFDFN Exposed Pad
Texas Instruments SN65LVPE502CP1RGER			24-VQFN		3.6 V	3 V		Buffer ReDriver	4 mm	4 mm		Surface Mount	0 °C	85 °C						CML	5 Gbps	VML	305 ps	100 mA	2	24-VFQFN Exposed Pad	USB 3.0	Input Equalization Output De-Emphasis	1.25 pF
Texas Instruments SN65LVDS324ZQLR			59-BGA Microstar Junior		1.95 V	1.65 V			4.5 mm	7 mm		Surface Mount														59-VFBGA	Machine Vision Video Conferencing			I2C SPI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

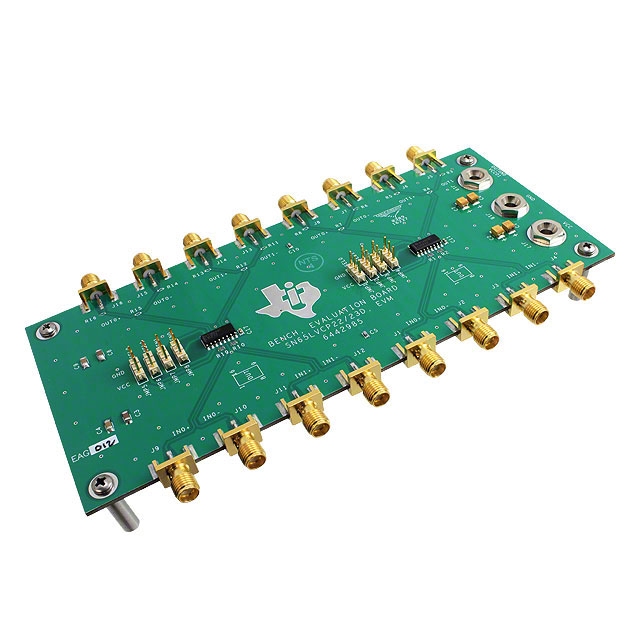

SN65LVCP22-23EVM | Datasheet
