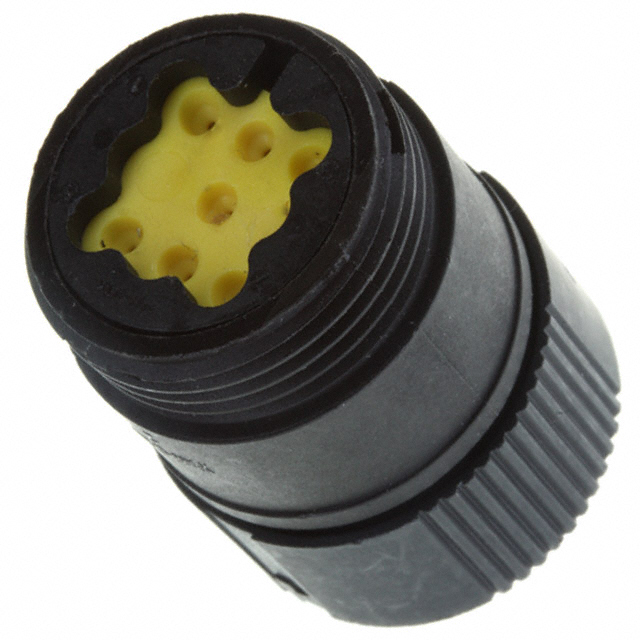

1445818-1

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	1445818-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	11-7
Shielding	Unshielded
Type	For Female Sockets

Part	Fastening Type	Number of Positions	Contact Shape	Insert Material	Features	Type	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shell Size - Insert	Contact Type	Connector Type	Shielding	Housing Color	Note	Orientation
TE Connectivity Raychem Cable Protection 1445818-1	Bayonet Lock	7	Circular	Thermoplastic	Coupling Nut	For Female Sockets	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	105 ░C	-55 °C	UL94 V-0	11-7	Crimp	Plug Housing	Unshielded	Black	Contacts Not Included	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 9.24

General part information

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Technical documentation and resources
