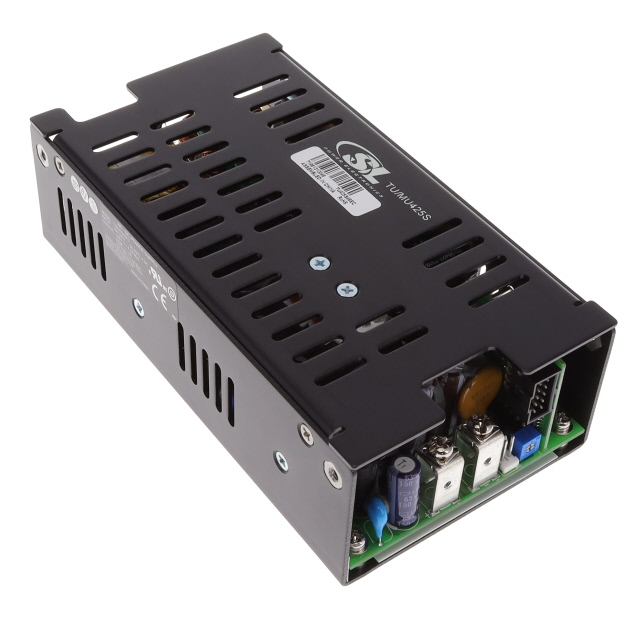

TU425S48EC

Active

AC/DC CONVERTER 48V 182W

Active

AC/DC CONVERTER 48V 182W

Description

General part information

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 300 VDC Input

Parameters and characteristics for this part

Specification	TU425S48EC

Applications	ITE (Commercial)
Approval Agency	CE, DEMKO, cURus
Current - Output 1	3.8 A
Efficiency	90 %
Features	PFC, Adjustable Output, Standby Output, Universal Input, Remote Sense
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	182 W, 312 W
Size / Dimension Height	1.62 in
Size / Dimension Length	6.2 in
Size / Dimension Width	3.3 in
Standard Number	60950-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	300 VDC
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

Part	Voltage - Output 1	Approval Agency	Type	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Standard Number	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Efficiency	Current - Output 1	Mounting Type	Number of Outputs	Features	Applications	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Isolation	Minimum Load Required
SL POWER / Advanced Energy TU425S48EC	48 V	CE cURus DEMKO	Enclosed	300 VDC	120 V	264 V	90 V	60950-1	70 °C	-10 °C	182 W 312 W	90 %	3.8 A	Chassis Mount	1	Adjustable Output PFC Remote Sense Standby Output Universal Input	ITE (Commercial)	6.2 in	3.3 in	1.62 in	3 kV	No
SL POWER / Advanced Energy TU425S48E	48 V	CE cURus DEMKO	Open Frame			264 V	90 V		70 °C	-10 °C	300 W 425 W	90 %	5.9 A	Chassis Mount	1	DC Input Capable Load Sharing Remote Sense Standby Output Universal Input	ITE (Commercial)	6.2 in	3.3 in	1.62 in	4000 Vpk	No
SL POWER / Advanced Energy TU425S48EF	48 V	CE cURus DEMKO	Enclosed	300 VDC	120 V	264 V	90 V	60950-1	70 °C	-10 °C	403 W	90 %	8.4 A	Chassis Mount	1	Adjustable Output PFC Remote Sense Standby Output Universal Input	ITE (Commercial)	6.2 in	3.3 in	1.62 in	3 kV	No
