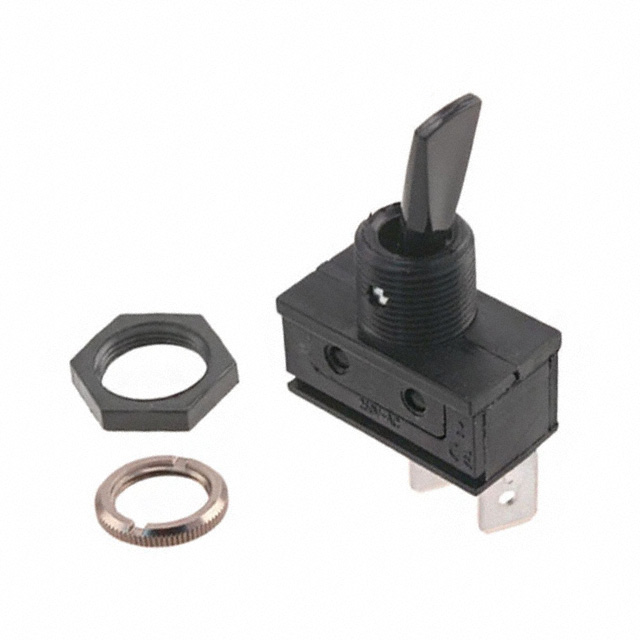

C1700H

Active

BULGIN LIMITED

SWITCH TOGGLE ON OFF SPST FLAT LEVER QUICK CONN 20A 250VAC 745.7VA PANEL MOUNT WITH THREADS

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH TOGGLE ON OFF SPST FLAT LEVER QUICK CONN 20A 250VAC 745.7VA PANEL MOUNT WITH THREADS

Technical Specifications

Parameters and characteristics for this part

Specification	C1700H

Actuator Length	16.4 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Flatted
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Current Rating (Amps)	Bushing Thread	Voltage Rating - AC	Illumination	Switch Function	Actuator Length	Actuator Type	Circuit	Actuator Material	Termination Style	Panel Cutout Dimensions [diameter]
BULGIN LIMITED C1700H	20 A	15/32-32	250 V	Non-Illuminated	On-Off	16.4 mm	Flatted	SPST	Nylon Polyamide (PA)	Quick Connect - 0.250" (6.3mm)	12.7 mm
BULGIN LIMITED C1700HOAAC	20 A	15/32-32	250 V	Non-Illuminated	On-Off	16.4 mm	Flatted	SPST		Quick Connect - 0.250" (6.3mm)	12.7 mm
BULGIN LIMITED C1700G	20 A	15/32-32	250 V	Non-Illuminated	On-Off			SPST	Nylon Polyamide (PA)	Quick Connect - 0.250" (6.3mm)	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
