HGP.1S.306.CLLPV

Active

LEMO

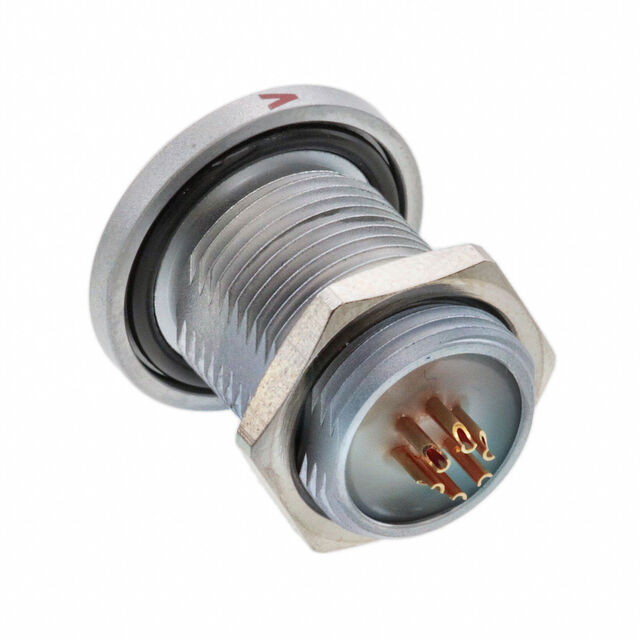

CONN CIRC RCPT 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGP.1S.306.CLLPV

Active

LEMO

CONN CIRC RCPT 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.72

Description

General part information

HGP.1S Series

6 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGP.1S.306.CLLPV	HGP.1S Series

Applications	Military, Aviation	Military, Aviation
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174, 400, 223, 187A, 179B, RG-58C, 302, 59B
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Receptacle, Female Socket, Receptacle, Female Sockets, Female Sockets, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	7 A	4 - 15 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Vacuumtight, Potted	Vacuumtight, Potted
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Includes	-	1 Nut, 1 Connector
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	6	1 - 6
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	302 - 405
Shield Termination	-	Solder
Shielding	Shielded	Shielded
