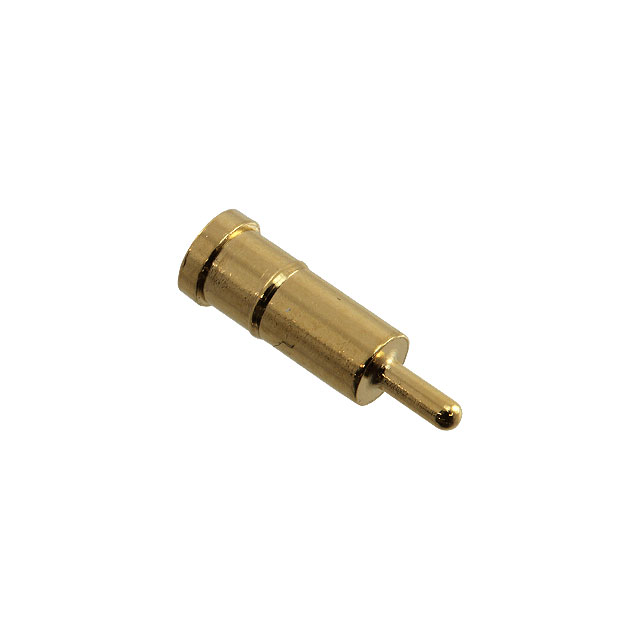

0433-0-15-15-03-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .040-.060 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0433-0-15-15-03-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .040-.060 PRESSFIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0433-0-15-15-03-27-04-0

Accepts Pin Diameter [Max] [diameter]	0.06 in
Accepts Pin Diameter [Max] [diameter]	1.52 mm
Accepts Pin Diameter [Min] [diameter]	1.02 mm
Accepts Pin Diameter [Min] [diameter]	0.04 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.12 in
Flange Diameter [diameter]	3.05 mm
Length - Overall [x]	0.39 in
Length - Overall [x]	9.91 mm
Mounting Hole Diameter [diameter]	0.106 in
Mounting Hole Diameter [diameter]	2.69 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.078 in
Pin Hole Diameter [diameter]	1.98 mm
Socket Depth	5.21 mm
Socket Depth	0.205 in
Tail Diameter	1.02 mm
Tail Diameter [diameter]	0.04 "
Tail Type	Standard Tail
Termination	Press-Fit

0433-0 Series

Part	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Tail Diameter [diameter]	Tail Diameter	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Tail Type	Contact Finish
Mill-Max Manufacturing Corp. 0433-0-15-01-03-01-04-0	5.21 mm	0.205 in	0.12 in	3.05 mm	Press-Fit	0.39 in	9.91 mm	0.04 "	1.02 mm	Beryllium Copper	0.106 in	2.69 mm	200 Áin	5.08 Ám	-55 °C	125 °C	0.078 in	1.98 mm	1.02 mm	0.06 in	0.04 in	1.52 mm	Standard Tail	Tin-Lead
Mill-Max Manufacturing Corp. 0433-0-15-15-03-14-04-0	5.21 mm	0.205 in	0.12 in	3.05 mm	Press-Fit	0.39 in	9.91 mm	0.04 "	1.02 mm	Beryllium Copper	0.106 in	2.69 mm	10 Áin	0.25 Ám	-55 °C	125 °C	0.078 in	1.98 mm	1.02 mm	0.06 in	0.04 in	1.52 mm	Standard Tail	Gold
Mill-Max Manufacturing Corp. 0433-0-15-15-03-27-04-0	5.21 mm	0.205 in	0.12 in	3.05 mm	Press-Fit	0.39 in	9.91 mm	0.04 "	1.02 mm	Beryllium Copper	0.106 in	2.69 mm	30 Áin	0.76 Ám	-55 °C	125 °C	0.078 in	1.98 mm	1.02 mm	0.06 in	0.04 in	1.52 mm	Standard Tail	Gold
Mill-Max Manufacturing Corp. 0433-0-15-80-03-80-04-0	5.21 mm	0.205 in	0.12 in	3.05 mm	Press-Fit	0.39 in	9.91 mm	0.04 "	1.02 mm	Beryllium Copper	0.106 in	2.69 mm	200 Áin	5.08 Ám	-55 °C	125 °C	0.078 in	1.98 mm	1.02 mm	0.06 in	0.04 in	1.52 mm	Standard Tail	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.02
		10	$ 0.86
		25	$ 0.83
		50	$ 0.81
		100	$ 0.78
		250	$ 0.71
		500	$ 0.64
		1000	$ 0.56
		2500	$ 0.51

Description

General part information

0433-0 Series

Pin Receptacle Connector 0.040" ~ 0.060" (1.02mm ~ 1.52mm) Standard Tail Press-Fit
