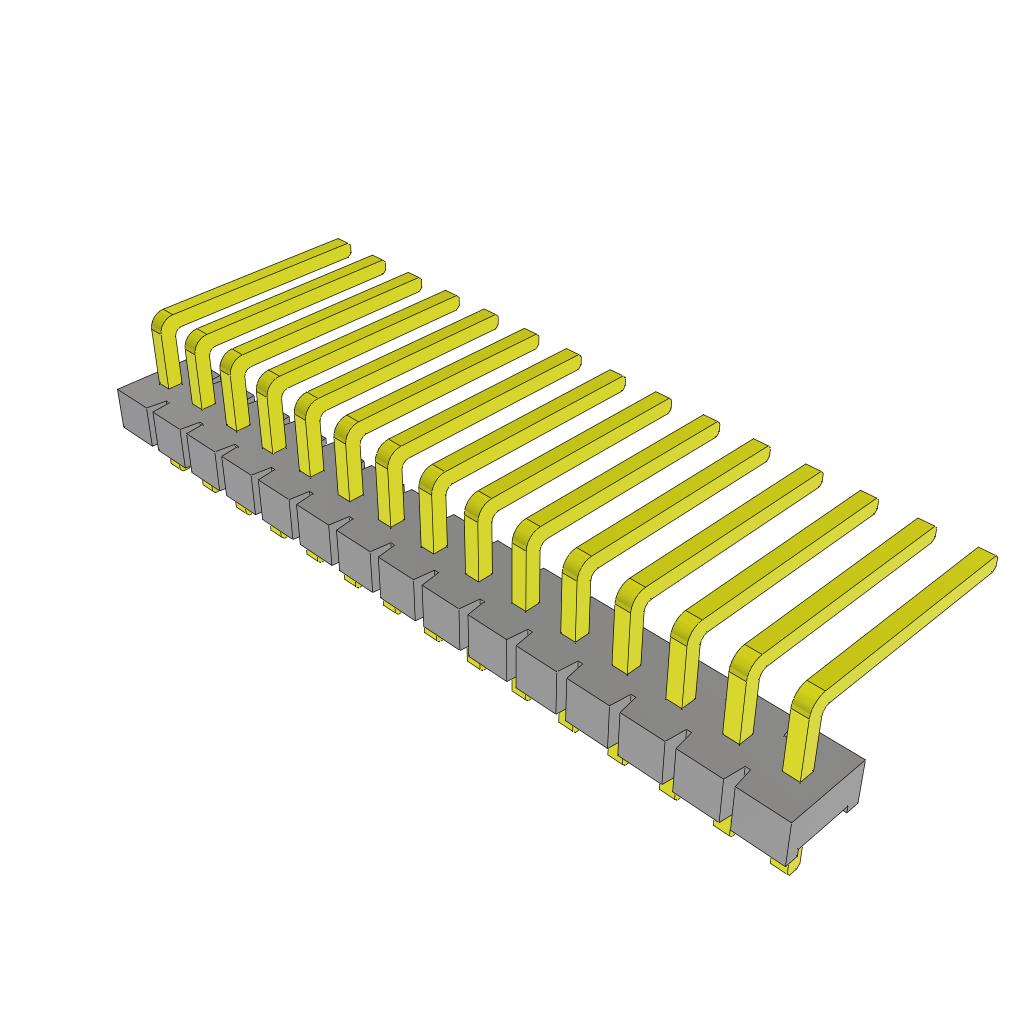

HFWJ-15-04-T-S-RA

Active

Samtec Inc.

.156" HIGH-TEMP POWER TERMINAL S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HFWJ-15-04-T-S-RA

Active

Samtec Inc.

.156" HIGH-TEMP POWER TERMINAL S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HFWJ-15-04-T-S-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.156 in
Contact Length - Post	3.96 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	6.7 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder

HFWJ-15 Series

Part	Contact Material	Current Rating (Amps)	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Shape	Material Flammability Rating	Connector Type	Number of Rows	Shrouding	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length
Samtec Inc. HFWJ-15-02-T-S-VS	Phosphor Bronze	6.7 A	Tin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	All	Liquid Crystal Polymer (LCP)	0.125 in	3.18 mm	Push-Pull	Surface Mount	0.462 in	11.73 mm	Natural	Square	UL94 V-0	Header	1	Unshrouded	Male Pin	15
Samtec Inc. HFWJ-15-05-T-S	Phosphor Bronze	6.7 A	Tin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	All	Liquid Crystal Polymer (LCP)	0.125 in	3.18 mm	Push-Pull	Through Hole	1.069 in	27.15 mm	Natural	Square	UL94 V-0	Header	1	Unshrouded	Male Pin	15	0.156 in	3.96 mm	1.35 in	34.29 mm
Samtec Inc. HFWJ-15-04-T-S-VS	Phosphor Bronze	6.7 A	Tin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	All	Liquid Crystal Polymer (LCP)	0.125 in	3.18 mm	Push-Pull	Surface Mount	0.752 in	19.1 mm	Natural	Square	UL94 V-0	Header	1	Unshrouded	Male Pin	15
Samtec Inc. HFWJ-15-04-T-S-RA	Phosphor Bronze	6.7 A	Tin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	All	Liquid Crystal Polymer (LCP)	0.25 in	6.35 mm	Push-Pull	Through Hole Right Angle			Natural	Square	UL94 V-0	Header	1	Unshrouded	Male Pin	15	0.156 in	3.96 mm
Samtec Inc. HFWJ-15-01-T-S	Phosphor Bronze	6.7 A	Tin	Solder	0.156 in	3.96 mm	105 ░C	-55 °C	All	Liquid Crystal Polymer (LCP)	0.125 in	3.18 mm	Push-Pull	Through Hole	0.45 in	11.43 mm	Natural	Square	UL94 V-0	Header	1	Unshrouded	Male Pin	15	0.175 in	4.45 mm			0.75 in	19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.27

Description

General part information

HFWJ-15 Series

Connector Header Through Hole, Right Angle 15 position 0.156" (3.96mm)
