W8382-2PG-P-528

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	W8382-2PG-P-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	6.6 mm
Cable Opening [diameter]	7.24 mm
Cable Opening [diameter]	0.285 in, 0.26 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Voltage Rating	300 VAC

MINI-CON-X INSTA-CLICK CONNECTOR

Part	Current Rating (Amps)	Orientation	Shell Material	Connector Type	Contact Material	Color	Features	Applications	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Shielding	Contact Finish - Mating	Primary Material	Insert Material	Mounting Type	Number of Positions
Conxall/Switchcraft W8382-2PG-P-528	Varies by Wire Gauge	Keyed	Polybutylene Terephthalate (PBT)	Male Pins, Plug	Copper Alloy	Black	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Thermoplastic	85 °C	-40 °C	Bayonet Lock	IP66, IP67, IP68	6.6 mm	7.24 mm	0.26 in, 0.285 in	300 VAC	Unshielded	Gold	Plastic	Thermoplastic	Free Hanging (In-Line)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

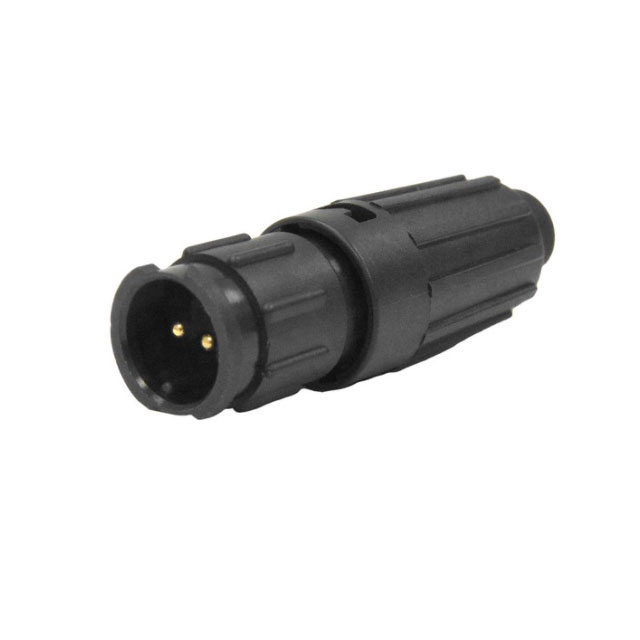

2 Position Circular Connector Plug, Male Pins Solder Cup
