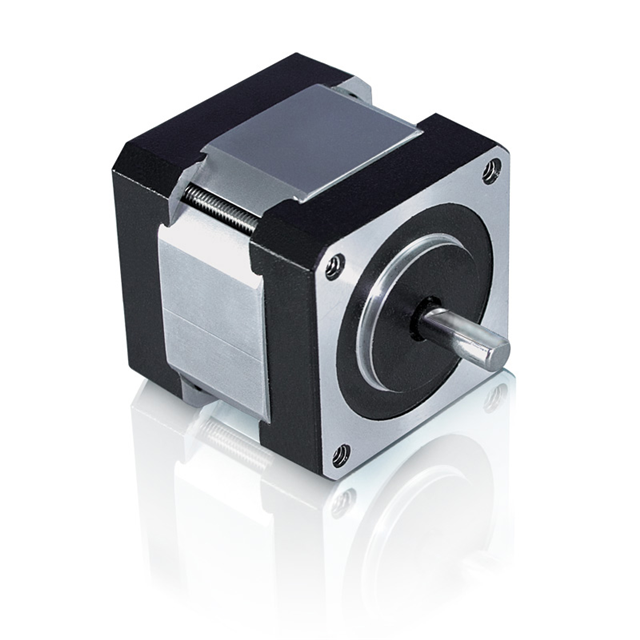

WO-417-13-06

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR

Part	Mounting Hole Spacing	Mounting Hole Spacing	NEMA Frame Size	Rotor Inertia	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Steps per Revolution	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Current Rating (Amps)	Features	Voltage - Rated	Step Angle	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Coil Type
LIN ENGINEERING WO-417-13-06	1.22 in	31 mm	17	0.483 gcm²	Wire Leads	41.9 mm	1.65 in	1.65 in	41.9 mm	0.197 in	5 mm	400	20.4 oz-in	144.1 mNm	800 mA	Round Shaft	24 VDC	0.9 °	50 °C	-20 C	6.6 Ohms	20 mm	0.787 in	Bipolar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Frame Size 17 400.0 Step 800 mA 24VDC

Technical documentation and resources

No documents available
