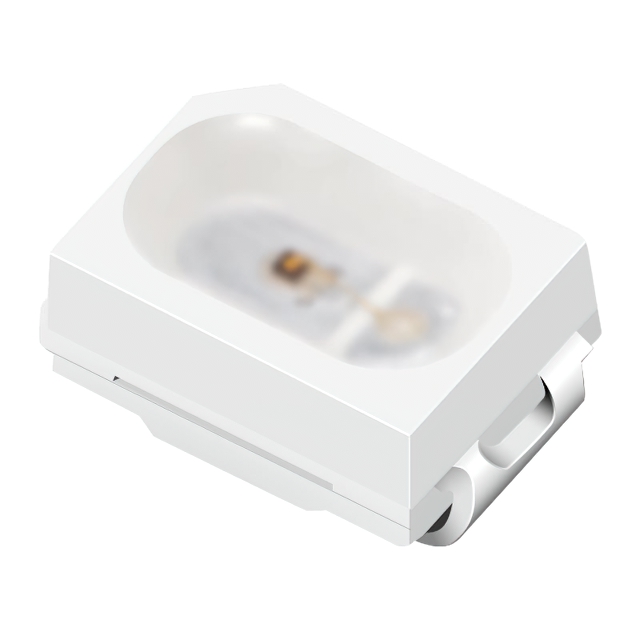

XZM2MOK105S - XZM2CRK105S

XZM2MOK105S

Active
SunLED

20MA 695MCD COLORLESS TRANSPARENT LENS 605NM ORANGE 2.2V SMD,2.7X2MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
XZM2MOK105S - XZM2CRK105S

XZM2MOK105S

Active
SunLED

20MA 695MCD COLORLESS TRANSPARENT LENS 605NM ORANGE 2.2V SMD,2.7X2MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationXZM2MOK105S
ConfigurationStandard
Current - Test20 mA
Height (Max) [Max] [z]1.3 mm
Lens ColorColorless
Lens Size [x]2.5 mm
Lens Size [y]1.5 mm
Lens StyleOval with Flat Top
Lens TransparencyClear
Millicandela Rating695 mcd
Mounting TypeSurface Mount
Package / Case2-SMD, J-Lead
Size / Dimension [x]2.7 mm
Size / Dimension [y]2 mm
Supplier Device Package2-SMD
Viewing Angle125 °
Voltage - Forward (Vf) (Typ)2.2 V
Wavelength - Dominant605 nm
Wavelength - Peak611 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.78
10$ 0.47
100$ 0.31
500$ 0.25
Digi-Reel® 1$ 0.78
10$ 0.47
100$ 0.31
500$ 0.25
Tape & Reel (TR) 2000$ 0.21
4000$ 0.20
6000$ 0.19
10000$ 0.19
14000$ 0.18
20000$ 0.18
50000$ 0.17
LCSCPiece 1$ 0.45
200$ 0.18
500$ 0.17
1000$ 0.17

Description

General part information

XZM2MOK105 Series

Orange 605nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
