N2510-50K2-RB

Active

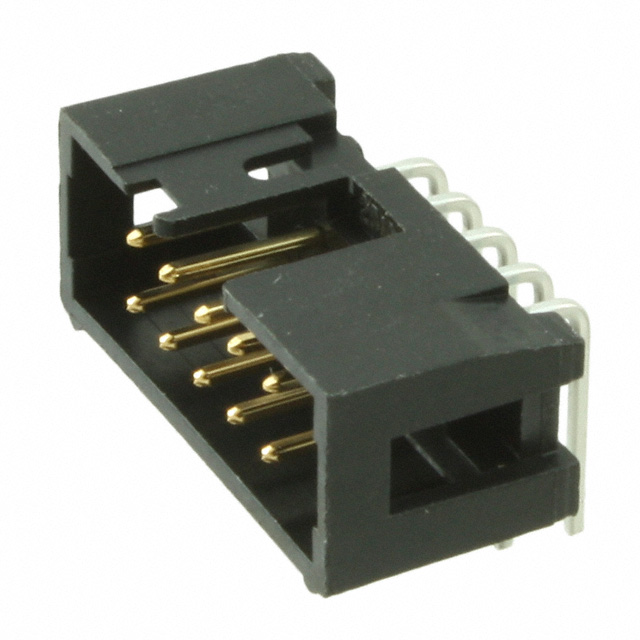

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2510-50K2-RB

Active

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N2510 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2510-50K2-RB	N2510 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 µin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 - 2 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.338 in	0.338 - 0.37 in
Insulation Height	8.59 mm	8.59 - 9.4 mm
Insulation Height	-	9.91 mm
Insulation Height	-	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Kinked Pin, Solder

N2510 Series

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish - Mating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Material Flammability Rating	Number of Positions	Style	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Features	Number of Rows	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
3M N2510-7003-UG	Gold	Black	105 ░C	-55 °C	Solder	Header	3.94 mm	0.155 "	Tin-Lead	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable	0.37 in	9.4 mm	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	2 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	15 µin	0.38 µm
3M N2510-6002RB-Z	Gold	Black	105 ░C	-55 °C	Solder	Header	2.84 mm	0.112 in	Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-60K2-RB	Gold	Black	105 ░C	-55 °C	Kinked Pin, Solder	Header	2.84 mm	0.112 in	Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-6002-UB	Gold	Black	105 ░C	-55 °C	Solder	Header	2.84 mm	0.112 in	Tin-Lead	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-6002-RB	Gold	Black	105 ░C	-55 °C	Solder	Header	2.84 mm	0.112 in	Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-50K2-RB	Gold	Black	105 ░C	-55 °C	Solder	Header	2.84 mm	0.112 in	Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable	0.338 in	8.59 mm	Through Hole, Right Angle	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám
3M N2510-6V0C-RB-WD	Gold	Black	105 ░C	-55 °C	Solder	Header			Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Keying Slot, Pick and Place	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-6003-RB	Gold	Black	105 ░C	-55 °C	Solder	Header	3.94 mm	0.155 "	Tin	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
3M N2510-6003-UB	Gold	Black	105 ░C	-55 °C	Solder	Header	3.94 mm	0.155 "	Tin-Lead	Push-Pull	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	10	Board to Board, Cable			Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Keying Slot	2	1.75 A	0.1 in	2.54 mm	Male Pin	All	200 µin	5.08 µm	Square	Copper Alloy	30 Áin	0.76 Ám	9.91 mm	0.39 in
