SCRE-01
ActiveMODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, PANEL MOUNT
SCRE-01
ActiveMODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5E, PANEL MOUNT
Description
General part information
SCRE Series

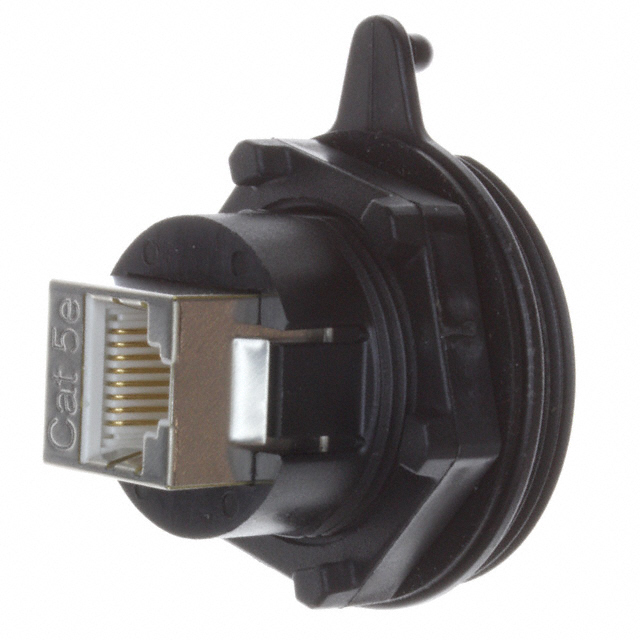

The SCRE-01 is a 8-pole Sealed Circular Ethernet Receptacle with gold-plated phosphor bronze contacts. Ethernet Cat-5e panel mount assembly and termination for standard Ethernet cable. The SCRE series panel mount receptacle is compatible with SCPE and SCPFE connectors.
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRE-01 |
|---|---|
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Features | Circular Threaded Coupling |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Feature | Rear Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Ratings | Cat5e |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
