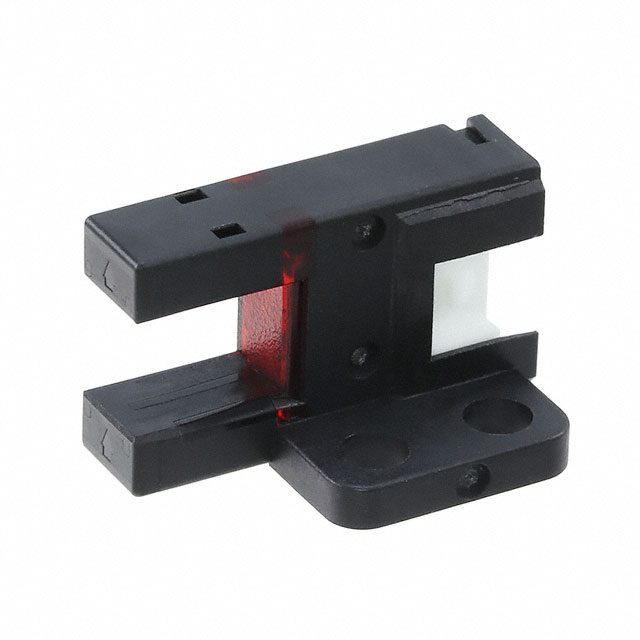

PM-F65W-P
ActivePanasonic Industrial Automation Sales
THROUGH BEAM PHOTOELECTRIC SENSOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-F65W-P |
|---|---|
| Current - Supply | 15 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP - Open Collector |
| Package / Case | Module, Connector |
| Response Time | 20 µs |
| Sensing Distance | 0.236 in |
| Sensing Distance | 6 mm |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.00 | |
| 10 | $ 10.91 | |||
Description
General part information
PM-F65 Series
Optical Sensor Through-Beam 0.236" (6mm) Module, Connector
Documents
Technical documentation and resources
No documents available
