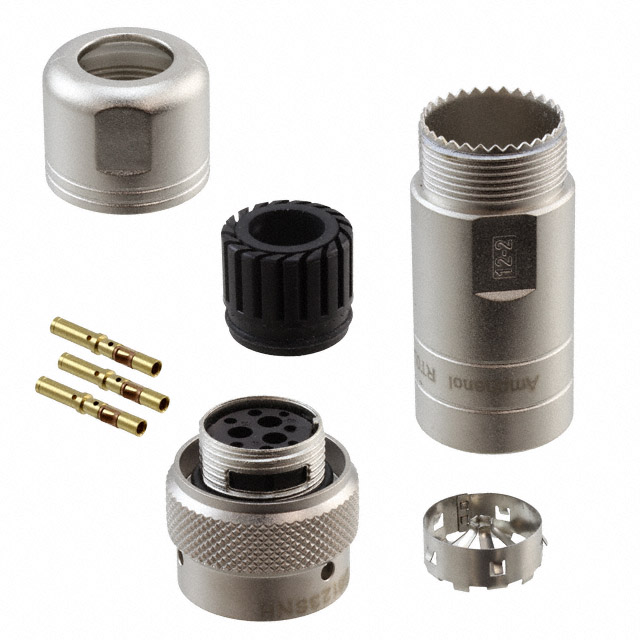

RT06123SNH-K

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	RT06123SNH-K

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	12-3
Termination	Crimp
Voltage Rating	250 VAC

Part	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Termination	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Shell Size - Insert	Ingress Protection	Color	Mounting Type	Orientation	Shell Material	Primary Material	Shell Finish	Housing Color	Features	Material Flammability Rating	Type	Contact Size	Contact Shape	Note	Shielding	Insert Material	Contact Type
Amphenol Sine Systems Corp RT06123PNH-K	13 A	Male Pins Plug	-40 °C	105 ░C	250 VAC	Crimp	Gold	Bayonet Lock	Flash	12-3	IP67 - Dust Tight Waterproof	Silver	Free Hanging (In-Line)	N	Zinc Die Cast	Metal	Nickel
Amphenol Sine Systems Corp RT06123SNH		Plug Housing	-40 °C	105 ░C				Bayonet Lock		12-3	IP67 - Dust Tight Waterproof		Free Hanging (In-Line)	N	Zinc Alloy		Nickel	Silver	Coupling Nut	UL94 V-0	For Female Sockets	16	Circular	Contacts Not Included	Shielded	Thermoplastic	Crimp
Amphenol Sine Systems Corp RT06123SNH-K	13 A	Female Sockets Plug	-40 °C	105 ░C	250 VAC	Crimp	Gold	Bayonet Lock	Flash	12-3	IP67 - Dust Tight Waterproof	Silver	Free Hanging (In-Line)	N	Zinc Die Cast	Metal	Nickel
Amphenol Sine Systems Corp RT06123PNHEC03

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
