BA-2010

Obsolete

CUI Devices

CONN ADAPT PLUG-PLUG F

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN ADAPT PLUG-PLUG F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

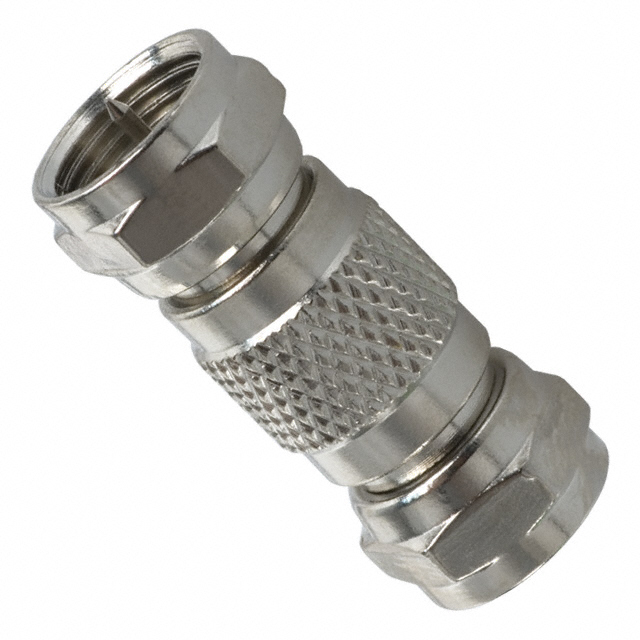

Adapter Coaxial Connector F Plug, Male Pin To F Plug, Male Pin

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BA-2010	- Series

Adapter Series	F to F	F to F, BNC to F
Adapter Type	Plug to Plug	Jack to Jack, Plug to Jack, Plug to Plug
Cable Group	-	RG-59, RG-6
Center Gender	Male to Male	Female to Female, Male to Male
Connector Style	-	F Type
Connector Type	-	Male Pin, Plug, Female Socket, Jack
Contact Termination	-	Push On, Solder
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	F Plug, Male Pin	F Jack, Female Socket, F Plug, Male Pin
Convert To (Adapter End)	Male Pin, F Plug	Female Socket, F Jack, BNC Jack, Male Pin, F Plug
Fastening Type	-	Snap-On
Impedance	-	75 Ohms
Mounting Feature	-	Bulkhead, Bulkhead - Front or Rear Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Shield Termination	-	Crimp, Twist On, Solder
Style	Straight	Straight

CONN ADAPT JACK-JACK F

Part	Convert From (Adapter End)	Convert To (Adapter End)	Center Gender	Conversion Type	Mounting Feature	Adapter Type	Style	Adapter Series	Fastening Type	Shield Termination	Connector Style	Number of Ports	Impedance	Mounting Type	Cable Group	Connector Type	Contact Termination
CUI Devices BA-2110	F Jack, Female Socket	F Jack, Female Socket	Female to Female	Same Series	Bulkhead	Jack to Jack	Straight	F to F
CUI Devices BA-0310									Snap-On	Crimp	F Type	1	75 Ohms	Free Hanging (In-Line)	RG-59	Male Pin, Plug
CUI Devices BA-0410										Twist On	F Type	1	75 Ohms	Free Hanging (In-Line)	RG-59	Male Pin, Plug	Push On
CUI Devices BA-0060										Crimp	F Type	1	75 Ohms	Free Hanging (In-Line)	RG-6	Male Pin, Plug
CUI Devices BA-0160										Crimp	F Type	1	75 Ohms	Free Hanging (In-Line)	RG-6	Male Pin, Plug
CUI Devices BA-4030	F Plug, Male Pin	BNC Jack, Female Socket		Between Series		Plug to Jack	Straight	BNC to F						Free Hanging (In-Line)
CUI Devices BA-1010					Bulkhead - Front or Rear Side Nut					Solder	F Type	1	75 Ohms			Female Socket, Jack	Solder
CUI Devices BA-2010	F Plug, Male Pin	F Plug, Male Pin	Male to Male	Same Series		Plug to Plug	Straight	F to F						Free Hanging (In-Line)
