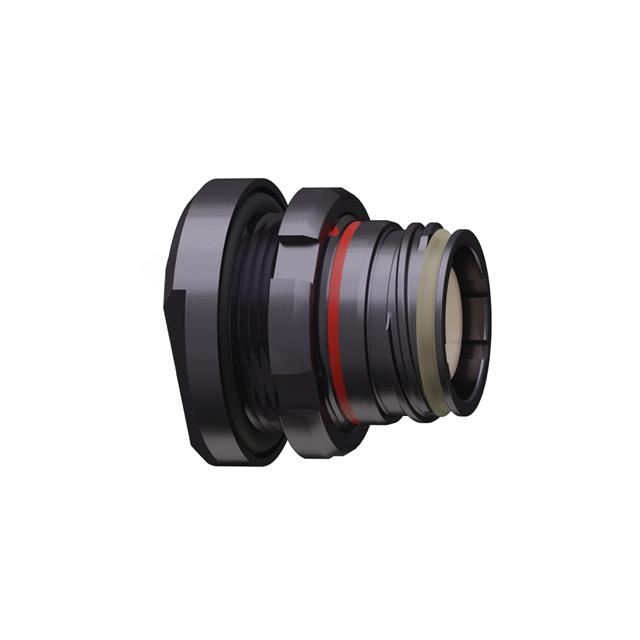

GKTAAT0-HM18WN-LS00

Active

ODU

ODU AMC SERIES T RECEPTACLE, SHE

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T RECEPTACLE, SHE

Technical Specifications

Parameters and characteristics for this part

Specification	GKTAAT0-HM18WN-LS00

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A, 5 A
Fastening Type	Threaded, Push-Pull
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	18
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	12
Shielding	Shielded
Voltage Rating	50 V

Part	Color	Ingress Protection	Primary Material	Fastening Type	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Shell Material	Shell Size - Insert	Connector Type	Shielding	Insert Material	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Finish
ODU GKTAAT0-HM18WN-LS00	Silver	IP68 IP69K	Metal	Push-Pull Threaded	18	Gold	5 A 7.5 A	Aluminum	12	Receptacle Female Sockets	Shielded	Polyetheretherketone (PEEK)	Copper Alloy	50 V	1.27 µm	50 µin	UL94 V-0	Bulkhead - Front Side Nut	-65 ░C	347 °F	A	Tin Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Female Sockets Solder Cup
