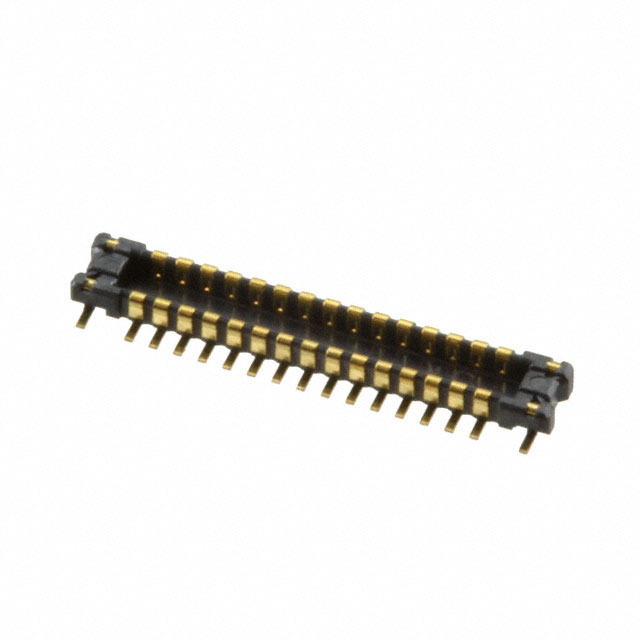

AXE230124A

Obsolete

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE230124A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Connector Type	Number of Rows	Contact Finish	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board
Panasonic Electric Works AXE230124A	30	Header Outer Shroud Contacts	2	Gold	Solder Retention	0.016 in	0.4 mm	0.8 mm	Surface Mount	0.026 in	0.65 mm
Panasonic Electric Works AXE230124D	30	Header Outer Shroud Contacts	2	Gold	Solder Retention	0.016 in	0.4 mm	0.8 mm	Surface Mount	0.026 in	0.65 mm
Panasonic Electric Works AXE230124	30	Header Outer Shroud Contacts	2	Gold	Solder Retention	0.016 in	0.4 mm	0.8 mm	Surface Mount	0.026 in	0.65 mm
