Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73-00002.1 | 73-00002 Series |
|---|---|---|
| - | - | |
| Circuit | DPST-NC | DPST-NC |
| Current Rating (Amps) | 2 A | 2 A |
| Features | Control Box Enclosure | Control Box Enclosure |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Reset Operation | Twist | Twist |
| Switch Function | On-Off | On-Off |
| Termination Style | Connector | Connector |
| Voltage Rating - DC | 30 V | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
73-00002 Series

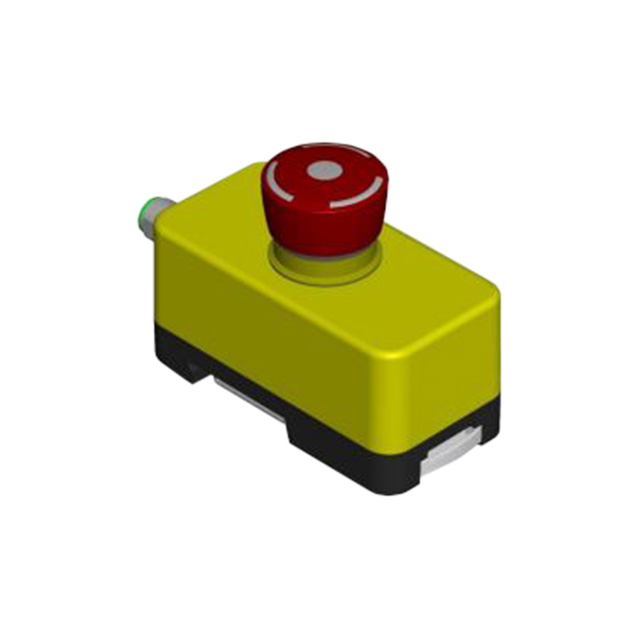

Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
| Part | Termination Style | Voltage Rating - DC | Features | Circuit | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Switch Function | Reset Operation |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 73-00002.1 | Connector | 30 V | Control Box Enclosure | DPST-NC | 2 A | Chassis Mount | 70 °C | -25 °C | IP67 - Dust Tight, Waterproof | On-Off | Twist |
EAO 73-00002.1 |
Description
General part information
73-00002 Series
Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
