4-1393479-3

Active

TE Connectivity AMP Connectors

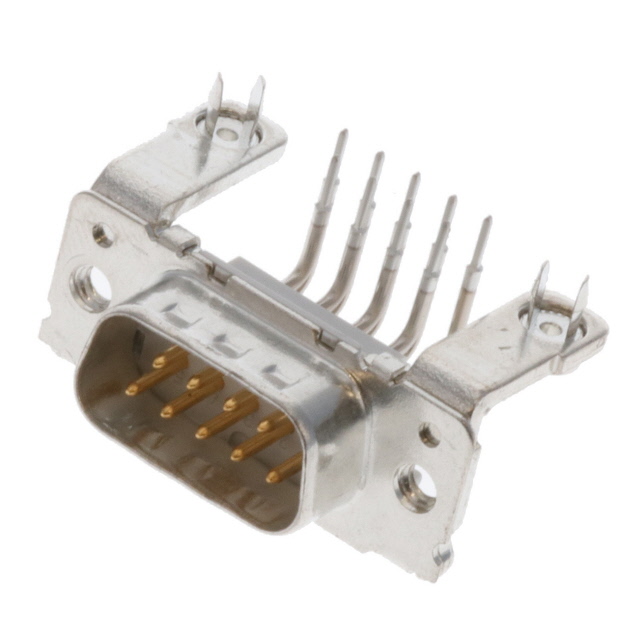

CONN D-SUB PLUG 9POS R/A SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB PLUG 9POS R/A SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1393479-3	1393479 Series

Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Type	Signal	Signal
Features	Grounding Indents	Grounding Indents
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9 - 15
Number of Rows	2	2
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder

CONN D-SUB PLUG R/A SLDR

Part	Connector Type	Mounting Type	Features	Contact Finish	Termination	Connector Style	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Number of Rows	Number of Positions	Shell Size, Connector Layout
TE Connectivity AMP Connectors 4-1393479-0	Male Pins, Plug	Through Hole, Right Angle	Grounding Indents	Gold	Solder	D-Sub	Signal
TE Connectivity AMP Connectors 4-1393479-5	Male Pins, Plug	Through Hole, Right Angle	Grounding Indents	Gold	Solder	D-Sub	Signal	B, DB	3	Housing/Shell (4-40)	2
TE Connectivity AMP Connectors 4-1393479-3	Male Pins, Plug	Through Hole, Right Angle	Grounding Indents	Gold	Solder	D-Sub	Signal	DE, E	1	Housing/Shell (4-40)	2	9
TE Connectivity AMP Connectors 5-1393479-9	Receptacle, Female Sockets	Through Hole, Right Angle		Gold	Solder	D-Sub	Signal	DE, E	1		2	9
TE Connectivity AMP Connectors 4-1393479-4	Male Pins, Plug	Through Hole, Right Angle	Grounding Indents	Gold	Solder	D-Sub	Signal			Housing/Shell (4-40)	2	15	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
