BTS5215LAUMA1

Active

Infineon Technologies

THE BTS5215L IS A HIGH SIDE POWER SWITCH WITH INTEGRATED VERTICAL POWER FET, PROVIDING EMBEDDED PROTECTION AND DIAGNOSTIC FUNCTIONS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BTS5215LAUMA1

Active

Infineon Technologies

THE BTS5215L IS A HIGH SIDE POWER SWITCH WITH INTEGRATED VERTICAL POWER FET, PROVIDING EMBEDDED PROTECTION AND DIAGNOSTIC FUNCTIONS.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTS5215LAUMA1

Current - Output (Max) [Max]	3.7 A
Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel

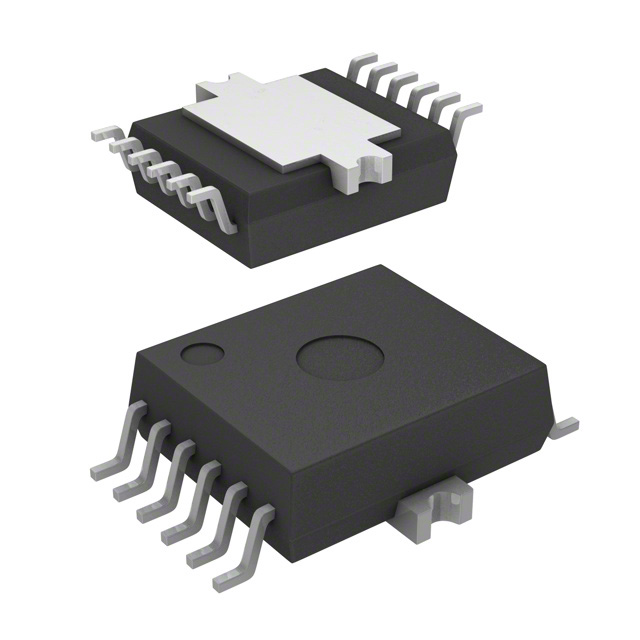

Package / Case	12-BSOP Exposed Pad
Package / Case	7.5 mm
Package / Case	0.295 in
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	70 mOhm
Supplier Device Package	PG-DSO-12-9
Switch Type	General Purpose
Voltage - Load [Max]	40 V
Voltage - Load [Min]	5.5 V
Voltage - Supply (Vcc/Vdd)	False

BTS5215 Series

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Ratio - Input:Output [custom]	Interface	Number of Outputs	Output Configuration	Mounting Type	Input Type	Current - Output (Max) [Max]	Fault Protection	Voltage - Supply (Vcc/Vdd)	Package / Case	Package / Case	Package / Case	Switch Type	Rds On (Typ)
Infineon Technologies BTS5215LAUMA1	N-Channel	150 °C	-40 °C	PG-DSO-12-9	5.5 V	40 V	1:1	On/Off	2	High Side	Surface Mount	Non-Inverting	3.7 A	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage		12-BSOP Exposed Pad	7.5 mm	0.295 in	General Purpose	70 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.70
		10	$ 3.33
		25	$ 3.15
		100	$ 2.73
		250	$ 2.59
		500	$ 2.32
	Digi-Reel®	1	$ 3.70
		10	$ 3.33
		25	$ 3.15
		100	$ 2.73
		250	$ 2.59
		500	$ 2.32
	Tape & Reel (TR)	1000	$ 1.96
		2000	$ 1.86
		5000	$ 1.79

Description

General part information

BTS5215 Series

BTS5215LAUMA1 is a smart high-side power switch. The N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Typical applications µC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, all types of resistive, inductive and capacitive loads, most suitable for loads with high inrush currents, so as lamps replaces electromechanical relays, fuses and discrete circuits applications.
