901-294

Active

Amphenol RF

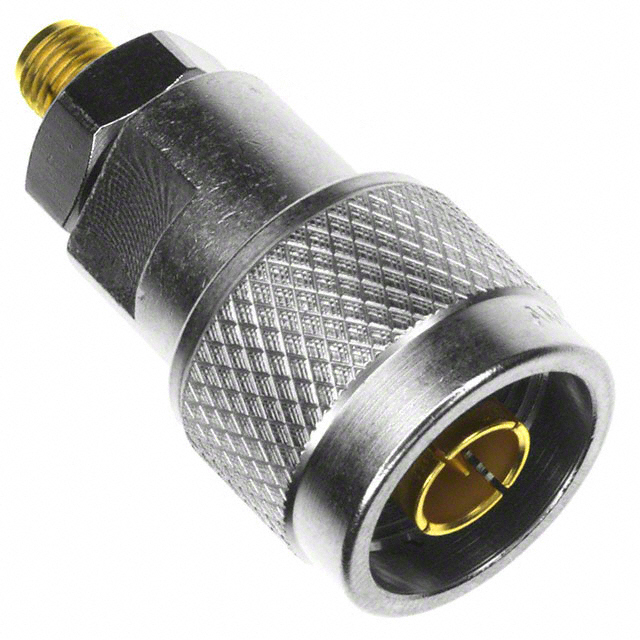

CONN TYPE N-SMA ADAPTER 0HZ TO 12.4GHZ 50OHM ST PL/RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N-SMA ADAPTER 0HZ TO 12.4GHZ 50OHM ST PL/RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	901-294

Adapter Type	Plug to Jack
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Plating	Dielectric Material	Housing Color	Voltage Rating	Number of Ports	Contact Termination	Connector Style	Mounting Feature	Connector Type	Ingress Protection	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Cable Group	Shield Termination	Body Finish	Impedance	Frequency - Max [Max]	Body Material	Mating Cycles	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Style	Adapter Type	Mounting Type
Amphenol RF 901-291-15	Gold	Polytetrafluoroethylene (PTFE)	Gold	500 V	1	Crimp Solder	SMA	Bulkhead - Front Side Nut	Female Socket Jack	Weatherproof	Beryllium Copper	-65 ░C	85 °C	RG-55	142 223 400	Crimp	Gold	50 Ohms	12.4 GHz	Brass	500
Amphenol RF 901-294	Gold	Polytetrafluoroethylene (PTFE)									Beryllium Copper	-65 ░C	165 °C					50 Ohms	12.4 GHz			Between Series	Female Socket SMA Jack	N Plug Male Pin	Straight	Plug to Jack	Free Hanging (In-Line)
Amphenol RF 901-293	Gold	Polytetrafluoroethylene (PTFE)									Beryllium Copper	-65 ░C	165 °C					50 Ohms	11 GHz			Between Series	Female Socket N Jack	SMA Plug Male Pin	Straight	Plug to Jack	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 137.55

General part information

Adapter Coaxial Connector N Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
