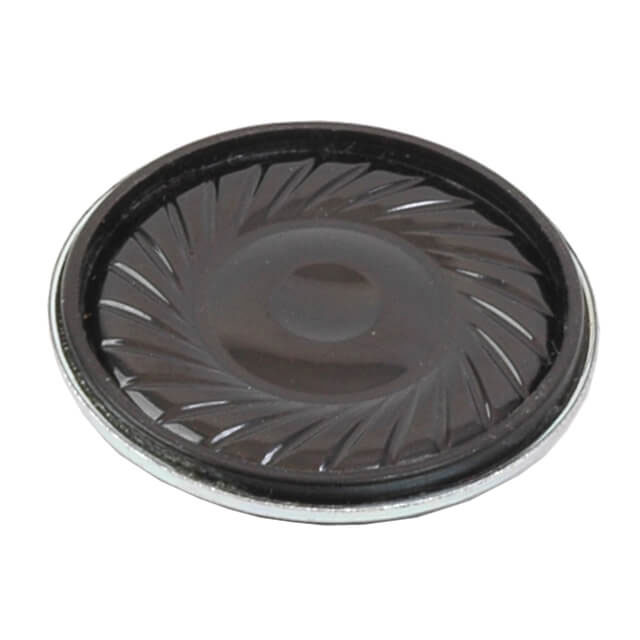

CLS0201MA

Active

CUI Devices

SPEAKER 8OHM 500MW TOP PORT 82DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 500MW TOP PORT 82DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0201MA

Efficiency - dBA	82 dBA
Efficiency - Testing	500mW/500mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	850 Hz
Frequency Range [Max]	9 kHz
Frequency Range [Min]	850 Hz
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	500 mW
Shape	Round
Size / Dimension [diameter]	20 mm
Size / Dimension [diameter]	0.787 in
Technology	Magnetic
Termination	Solder Pads
Type	Low Profile

Part	Power - Rated	Efficiency - Testing	Frequency Range [Min]	Frequency Range [Max]	Impedance	Material - Magnet	Efficiency - Type	Termination	Type	Port Location	Frequency - Self Resonant	Efficiency - dBA	Technology	Power - Max [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Shape	Material - Cone
CUI Devices CLS0201MA	500 mW	500mW/500mm	850 Hz	9 kHz	8 Ohms	Nd-Fe-B	Sound Pressure Level (SPL)	Solder Pads	Low Profile	Top	850 Hz	82 dBA	Magnetic	1 W	20 mm	0.787 in	Round	Polyester Polyethylene Terephthalate (PET)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 500 mW 850 Hz ~ 9 kHz Top Round
