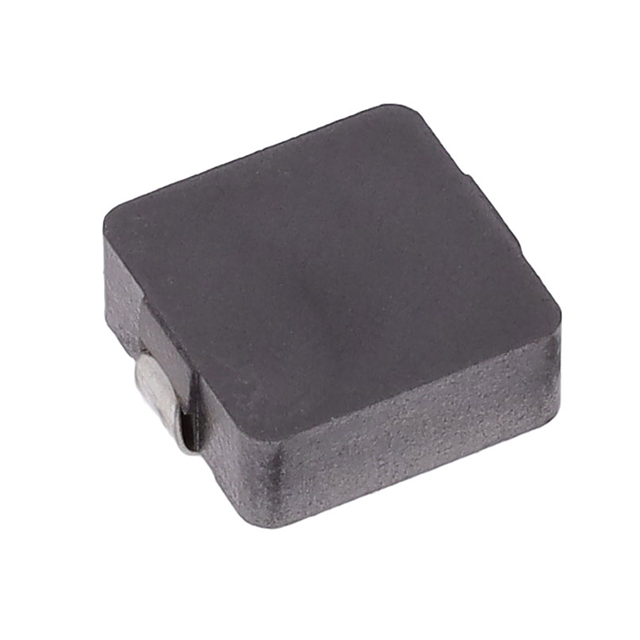

CMLE104T-R68MS1R607

Active

Delta Electronics/Cyntec

FIXED IND 680NH 28A 1.6MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 680NH 28A 1.6MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 360NH 43A 0.76MOHM SMD

Part	Shielding	Current - Saturation (Isat)	Material - Core	Mounting Type	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Amps)	Inductance	DC Resistance (DCR)	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics/Cyntec CMLE104T-R36MS0R765	Shielded	45 A	Metal	Surface Mount	100 kHz	0.157 in	4 mm	0.439 in	11.15 mm	0.394 in	10 mm	43 A	360 nH	0.76 mOhm	Nonstandard	20 %	-55 °C	125 °C
Delta Electronics/Cyntec CMLE104T-R68MS1R607	Shielded	31 A	Metal	Surface Mount	100 kHz	0.157 in	4 mm	0.439 in	11.15 mm	0.394 in	10 mm	28 A	0.68 µH	1.6 mOhm	Nonstandard	20 %	-55 °C	125 °C
Delta Electronics/Cyntec CMLE104T-1R0MS2R307	Shielded	28 A	Metal	Surface Mount	100 kHz	0.157 in	4 mm	0.439 in	11.15 mm	0.394 in	10 mm	25 A	1 µH	2.3 mOhm	Nonstandard	20 %	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 nH Shielded Inductor 28 A 1.6mOhm Nonstandard
