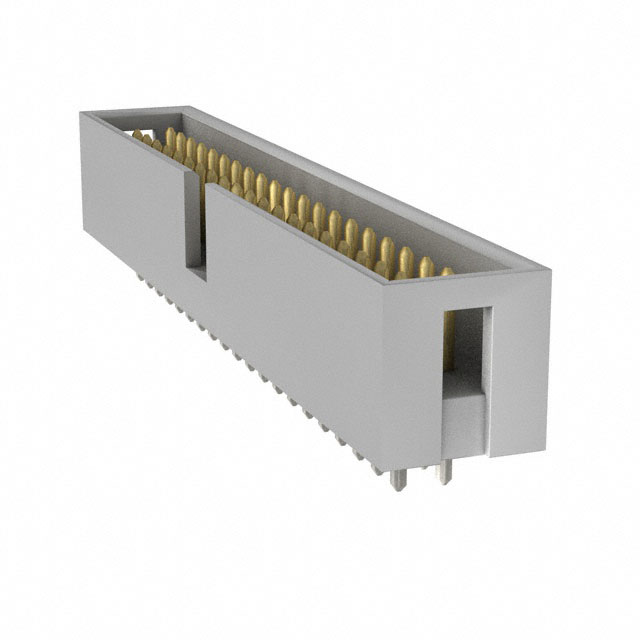

AWH 40G-0202-T

Active

Assmann WSW Components

CONN HEADER VERT 40POS 2.54MM

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER VERT 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWH 40G-0202-T

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Rows	Connector Type	Fastening Type	Number of Positions Loaded	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Termination	Material Flammability Rating	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Material	Style	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Assmann WSW Components AWH 40G-0202-T	2	Header	Push-Pull	All	Square	2.54 mm	0.1 in	Keying Slot	Solder	UL94 V-0	Through Hole	40	-40 °C	105 ░C	Male Pin	Gold	3 A	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Gray	0.1 in	2.54 mm	Shrouded - 4 Wall	0.13 in	3.3 mm	17 mm	0.669 "	Tin	Brass	Board to Cable/Wire
Assmann WSW Components AWH 40A-0232-T	2	Header	Latch Lock/Eject Hooks Long	All	Square	2.54 mm	0.1 in	Keying Slot	Solder	UL94 V-0	Through Hole Right Angle	40	-40 °C	105 ░C	Male Pin	Gold	3 A	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Gray	0.1 in	2.54 mm	Shrouded - 4 Wall					Tin	Brass	Board to Cable/Wire	0.327 "	8.3 mm	0.15 in	3.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	80	$ 1.36

General part information

Connector Header Through Hole 40 position 0.100" (2.54mm)
