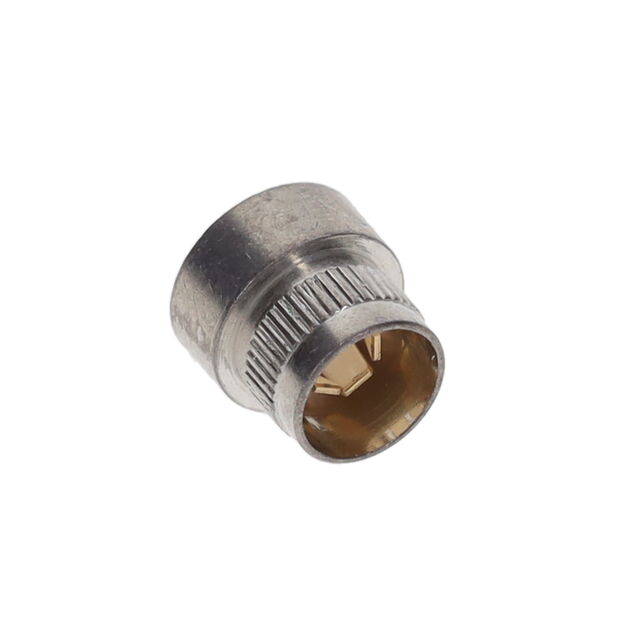

0388-0-15-01-08-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .084-.102 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .084-.102 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	0388-0-15-01-08-27-10-0

Accepts Pin Diameter [Max]	0.102 "
Accepts Pin Diameter [Max]	2.59 mm
Accepts Pin Diameter [Min]	0.084 "
Accepts Pin Diameter [Min]	2.13 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter	0.17 in
Flange Diameter	4.32 mm
Length - Overall	4.19 mm
Length - Overall	0.165 in
Mounting Hole Diameter [diameter]	3.5 mm
Mounting Hole Diameter [diameter]	0.138 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.122 in
Pin Hole Diameter [diameter]	3.1 mm
Socket Depth	4.19 mm
Socket Depth	0.165 in
Tail Type	No Tail
Termination	Press-Fit

Part	Length - Overall	Length - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Flange Diameter	Flange Diameter	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 0388-0-15-01-08-14-10-0	4.19 mm	0.165 in	-55 °C	125 °C	Press-Fit	Beryllium Copper	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm	4.19 mm	0.165 in	0.17 in	4.32 mm	10 Áin	0.25 Ám	No Tail	0.102 "	0.084 "	2.59 mm	2.13 mm
Mill-Max Manufacturing Corp. 0388-0-15-01-08-27-10-0	4.19 mm	0.165 in	-55 °C	125 °C	Press-Fit	Beryllium Copper	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm	4.19 mm	0.165 in	0.17 in	4.32 mm	30 Áin	0.76 Ám	No Tail	0.102 "	0.084 "	2.59 mm	2.13 mm
Mill-Max Manufacturing Corp. 0388-0-15-80-08-27-10-0	4.19 mm	0.165 in	-55 °C	125 °C	Press-Fit	Beryllium Copper	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm	4.19 mm	0.165 in	0.17 in	4.32 mm	30 Áin	0.76 Ám	No Tail	0.102 "	0.084 "	2.59 mm	2.13 mm
Mill-Max Manufacturing Corp. 0388-0-15-80-08-14-10-0	4.19 mm	0.165 in	-55 °C	125 °C	Press-Fit	Beryllium Copper	Gold	3.5 mm	0.138 in	0.122 in	3.1 mm	4.19 mm	0.165 in	0.17 in	4.32 mm	10 Áin	0.25 Ám	No Tail	0.102 "	0.084 "	2.59 mm	2.13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.084" ~ 0.102" (2.13mm ~ 2.59mm) No Tail Press-Fit
