109E5748C501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 48VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 136.16
		16	$ 122.37
		32	$ 120.65
		56	$ 112.89

Description

General part information

109E5748 Series

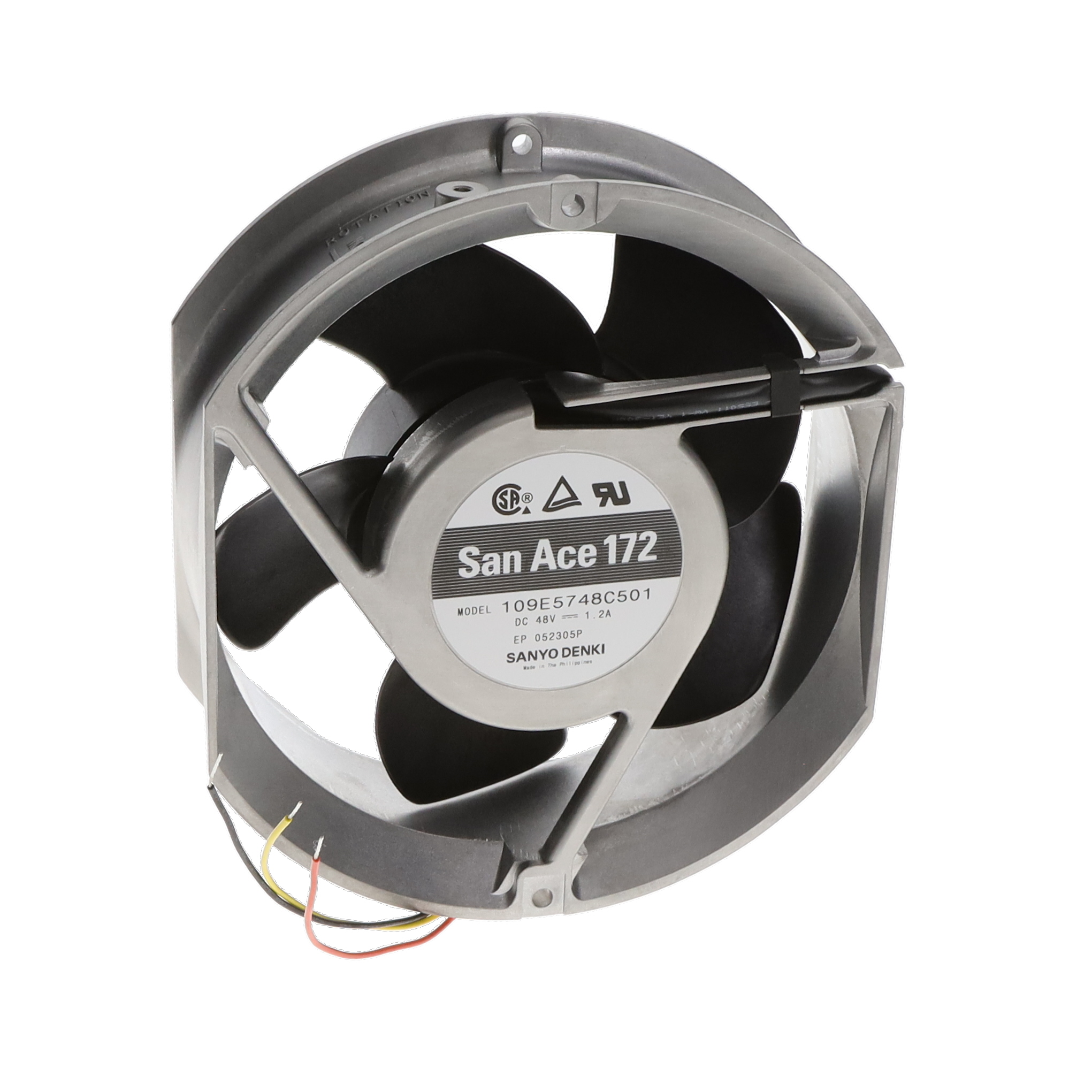

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 350.0 CFM (9.80m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Numbering System DC Fan

Rotor Balancing

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109E5748C501	109E5748 Series

Air Flow	9.8 m³/min	4.14 - 9.8 m³/min
Air Flow	350 CFM	148 - 350 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.2 A	0.19 - 110 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	-	41 - 60 dB
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	57.6 W	5.28 - 57.6 W
RPM	4800 RPM	2000 - 4800 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	1.237 in H2O	0.271 - 1.237 in H2O
Static Pressure	308 Pa	67.6 - 308 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	55.2 VDC	55.2 VDC
Voltage Range [Min]	40.8 VDC	40.8 VDC
Weight	760 g	760 g
Weight	1.7 lbs	1.7 lbs
Width [y]	51 mm	51 mm

109E5748 Series

FAN AXIAL 172X51MM 48VDC WIRE

Part	Width [y]	Material - Blade	Current Rating (Amps)	Approval Agency	Material - Frame	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Termination	Noise	Fan Type	Bearing Type	Weight	Weight	Power (Watts)	Voltage - Rated [custom]	Features	Lifetime @ Temp.	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	RPM
Sanyo Denki America Inc. 109E5748H501	51 mm	Plastic	0.28 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	52 dB	Tubeaxial	Ball	760 g	1.7 lbs	13.44 W	48 VDC	Locked Rotor Protection, Speed Sensor (Tach)	40000 Hrs	137.2 Pa	0.551 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	6.33 m³/min	226 CFM
Sanyo Denki America Inc. 109E5748C502	51 mm	Plastic	1.2 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads		Tubeaxial	Ball	760 g	1.7 lbs	57.6 W	48 VDC		40000 Hrs	308 Pa	1.237 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	9.8 m³/min	350 CFM	4800 RPM
Sanyo Denki America Inc. 109E5748H502	51 mm	Plastic	0.28 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads	52 dB	Tubeaxial	Ball	760 g	1.7 lbs	13.44 W	48 VDC		40000 Hrs	137.2 Pa	0.551 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	6.33 m³/min	226 CFM
Sanyo Denki America Inc. 109E5748M501	51 mm	Plastic	110 mA	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	41 dB	Tubeaxial	Ball	760 g	1.7 lbs	5.28 W	48 VDC	Locked Rotor Protection, Speed Sensor (Tach)	40000 Hrs	67.6 Pa	0.271 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	4.14 mł/min	148 CFM	2000 RPM
Sanyo Denki America Inc. 109E5748M502	51 mm	Plastic	110 mA	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads	41 dB	Tubeaxial	Ball	760 g	1.7 lbs	5.28 W	48 VDC		40000 Hrs	67.6 Pa	0.271 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	4.14 mł/min	148 CFM	2000 RPM
Sanyo Denki America Inc. 109E5748F501	51 mm	Plastic	0.19 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	47 dB	Tubeaxial	Ball	760 g	1.7 lbs	9.12 W	48 VDC	Locked Rotor Protection, Speed Sensor (Tach)	40000 Hrs	94.6 Pa	0.38 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	5.04 mł/min	180 CFM	2500 RPM
Sanyo Denki America Inc. 109E5748C501	51 mm	Plastic	1.2 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads		Tubeaxial	Ball	760 g	1.7 lbs	57.6 W	48 VDC	Locked Rotor Protection, Speed Sensor (Tach)	40000 Hrs	308 Pa	1.237 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	9.8 m³/min	350 CFM	4800 RPM
Sanyo Denki America Inc. 109E5748F502	51 mm	Plastic	0.19 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	2 Wire Leads	47 dB	Tubeaxial	Ball	760 g	1.7 lbs	9.12 W	48 VDC		40000 Hrs	94.6 Pa	0.38 in H2O	-20 °C	70 °C	-20 C	70 °C	55.2 VDC	40.8 VDC	5.04 mł/min	180 CFM	2500 RPM
Sanyo Denki America Inc. 109E5748K501	51 mm	Plastic	0.7 A	CSA, TUV, UL	Aluminum	Rectangular/Rounded	150 mm	172 mm	3 Wire Leads	60 dB(A)	Tubeaxial	Ball	760 g	1.7 lbs	33.6 W	48 VDC	Locked Rotor Protection, Speed Sensor (Tach)	40000 Hrs	243 Pa	0.976 in H2O	-20 °C	60 °C	-20 C	60 °C	55.2 VDC	40.8 VDC	8.4 mł/min	300 CFM	4100 RPM
