1-1102105-2
ActiveTE Connectivity AMP Connectors

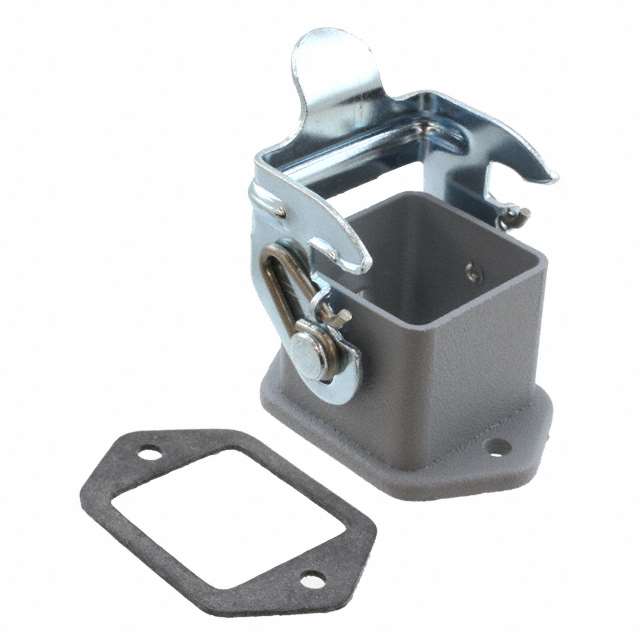

CONN BASE BOTTOM ENTRY SZ1
Deep-Dive with AI
Search across all available documentation for this part.
1-1102105-2
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102105-2 | 1102105 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Zinc, Die Cast | Zinc, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Size | 1 Gallon | 1 Gallon |
| Size / Dimension [x] | 28 mm | 28 mm |
| Size / Dimension [x] | 1.102 in | 1.102 in |
| Size / Dimension [y] | 1.575 in | 1.575 in |
| Size / Dimension [y] | 40 mm | 40 mm |
| Size / Dimension [z] | 23 mm | 23 mm |
| Size / Dimension [z] | 0.906 in | 0.906 in |
| Style | Bottom Entry | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.42 | |
| 10 | $ 17.16 | |||
1102105 Series
CONN BASE BOTTOM ENTRY SZ1
| Part | Housing Finish | Lock Location | Connector Type | Ingress Protection | Style | Size | Housing Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1102105-2 | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount | IP65 - Dust Tight, Water Resistant | Bottom Entry | 1 Gallon | Gray | 28 mm | 23 mm | 1.575 in | 40 mm | 0.906 in | 1.102 in | Zinc, Die Cast |
TE Connectivity AMP Connectors 1-1102105-2 | Powder Coated | Locking Clip (1) on Base Bottom | Base - Panel Mount | IP65 - Dust Tight, Water Resistant | Bottom Entry | 1 Gallon | Gray | 28 mm | 23 mm | 1.575 in | 40 mm | 0.906 in | 1.102 in | Zinc, Die Cast |
Description
General part information
1102105 Series
Base - Panel Mount Connector Bottom Entry 1 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
