DLCBS7-6-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 3/8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DLCBS7-6-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 3/8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBS7-6-01

Between Board Height	0.375 in
Between Board Height	0.375 in
Between Board Height	9.53 mm
Features	Winged
Holding Type	Snap Lock
Length - Overall	0.988 in
Length - Overall	25.1 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

DLCBS7 Series

Part	Features	Between Board Height	Between Board Height	Between Board Height	Holding Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Material	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall	Length - Overall
Essentra Access Solutions DLCBS7-5-01	Winged	0.3125 in	7.95 mm	0.313 "	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon	23.5 mm	0.925 "	0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions DLCBS7-8-01	Winged	0.5 in	12.7 mm	0.5 in	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon			0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm	1.122 in	28.5 mm
Essentra Access Solutions DLCBS7-12-01	Winged	0.75 in	19.05 mm	0.75 in	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon	34.9 mm	1.374 in	0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions DLCBS7-9-01	Winged	0.5625 in	14.3 mm	0.563 in	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon			0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm	1.165 in	29.6 mm
Essentra Access Solutions DLCBS7-3-01	Winged	0.1875 "	4.78 mm	0.188 "	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon	20.4 mm	0.803 in	0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions DLCBS7-6-01	Winged	0.375 in	9.53 mm	0.375 in	Snap Lock	0.062 in	0.0625 in	1.57 mm	Nylon			0.15625 in	3.96 mm	0.156 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.0625 "	0.062 "	1.57 mm	0.988 in	25.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.15
		10	$ 0.11
		25	$ 0.10
		50	$ 0.09
		100	$ 0.09
		250	$ 0.08
		500	$ 0.07
		1000	$ 0.07
		2500	$ 0.06

Description

General part information

DLCBS7 Series

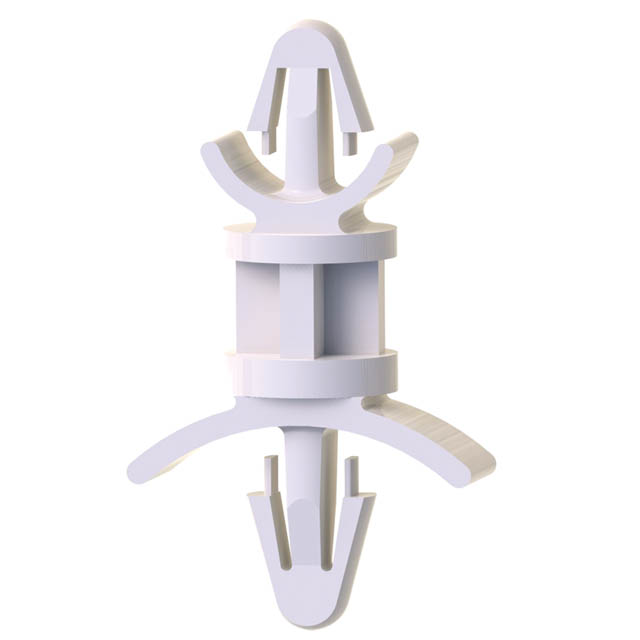

Board Support Snap Lock / Snap Lock Nylon 0.375" (9.53mm) 3/8"
