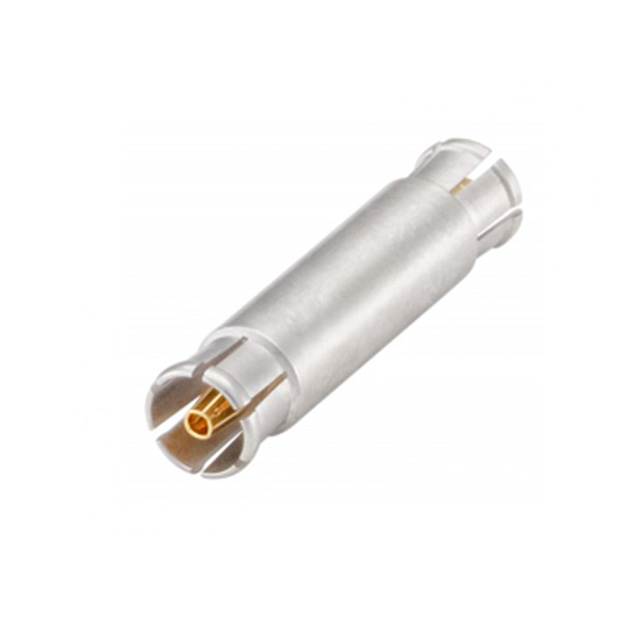

119K107-K00N5

Active

Rosenberger

ADAPT PSMP JACK - PSMP JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT PSMP JACK - PSMP JACK

Technical Specifications

Parameters and characteristics for this part

Specification	119K107-K00N5

Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	PSMP Jack, Female Socket
Convert To (Adapter End)	PSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Conversion Type	Frequency - Max [Max]	Body Finish	Adapter Type	Center Gender	Center Contact Plating	Fastening Type	Center Contact Material	Style	Convert To (Adapter End)	Dielectric Material	Impedance	Convert From (Adapter End)	Body Material
Rosenberger 119K107-K00N5	-65 ░C	165 °C	Free Hanging (In-Line)	Same Series	10 GHz	White Bronze	Jack to Jack	Female to Female	Gold	Snap-On	Beryllium Copper	Straight	Female Socket PSMP Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	PSMP Jack Female Socket	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PSMP Jack, Female Socket To PSMP Jack, Female Socket 50 Ohms
