10131318-0611100LF
ActiveAmphenol ICC (FCI)

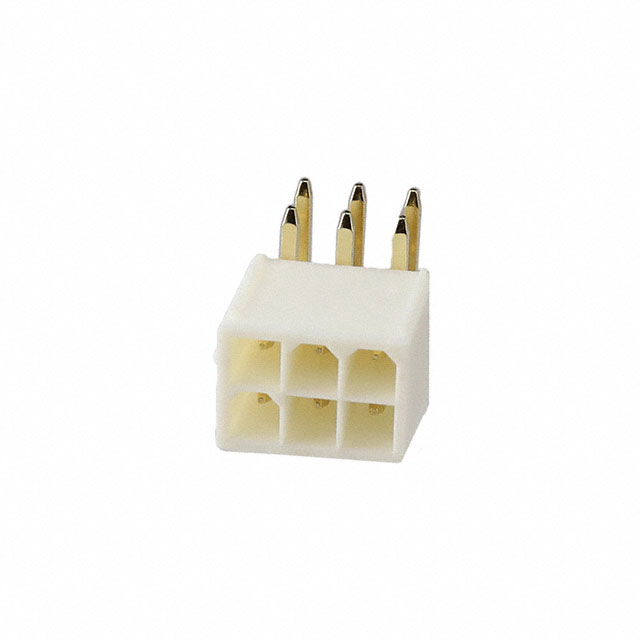

CONN HEADER R/A 6POS 4.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10131318-0611100LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height [z] | 0.404 in |
| Insulation Height [z] | 10.26 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.88 | |
| 10 | $ 0.85 | |||
| 80 | $ 0.72 | |||
| 440 | $ 0.71 | |||
| 945 | $ 0.67 | |||
Description
General part information
10131318 Series
Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm)
