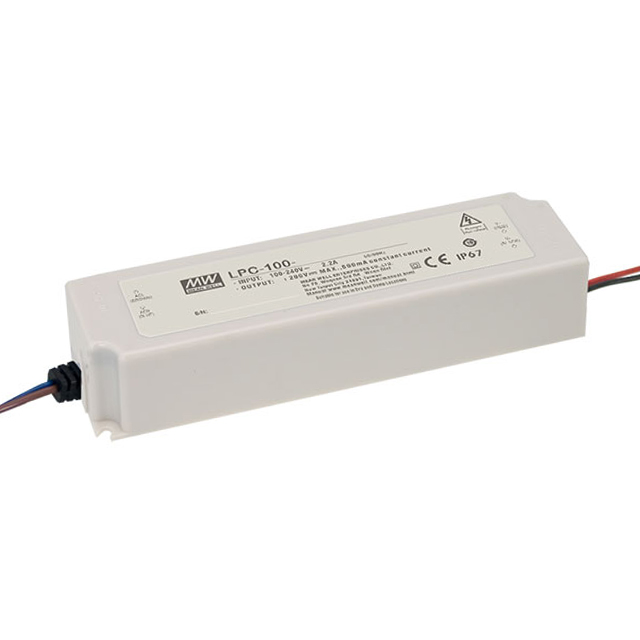

LPC-100-500
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 100-200V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPC-100-500
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 100-200V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPC-100-500 |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 90 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 100 W |
| Ratings | IP67 |
| Size / Dimension [x] | 190 mm |
| Size / Dimension [x] | 7.48 " |
| Size / Dimension [y] | 2.05 in |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [z] | 37 mm |
| Size / Dimension [z] | 1.46 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output [Max] | 200 V |
| Voltage - Output [Min] | 100 V |
LPC-100 Series
| Part | Features | Voltage - Isolation | Topology | Termination Style | Power (Watts) | Mounting Type | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Number of Outputs | Voltage - Output [Min] | Voltage - Output [Max] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Ratings | Current - Output (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | OVP SCP | 3000 V | AC DC Converter | Wire Leads | 100 W | Chassis Mount | CE | 50 °C | -25 °C | 37 mm | 1.46 " | 2.05 in | 190 mm | 52 mm | 7.48 " | 90 % | 1 | 143 V | 286 V | 90 VAC | 264 VAC | IP67 | 350 mA | Constant Current |
MEAN WELL USA Inc. | OVP SCP | 3000 V | AC DC Converter | Wire Leads | 101 W | Chassis Mount | CE | 50 °C | -25 °C | 37 mm | 1.46 " | 2.05 in | 190 mm | 52 mm | 7.48 " | 1 | 36 V | 72 V | 90 VAC | 264 VAC | IP67 | 1.4 A | Constant Current | |
MEAN WELL USA Inc. | OVP SCP | 3000 V | AC DC Converter | Wire Leads | 100 W | Chassis Mount | CE | 50 °C | -25 °C | 37 mm | 1.46 " | 2.05 in | 190 mm | 52 mm | 7.48 " | 90 % | 1 | 72 V | 143 V | 90 VAC | 264 VAC | IP67 | 700 mA | Constant Current |
MEAN WELL USA Inc. | OVP SCP | 3000 V | AC DC Converter | Wire Leads | 100 W | Chassis Mount | CE | 50 °C | -25 °C | 37 mm | 1.46 " | 2.05 in | 190 mm | 52 mm | 7.48 " | 90 % | 1 | 100 V | 200 V | 90 VAC | 264 VAC | IP67 | 500 mA | Constant Current |
MEAN WELL USA Inc. | OVP SCP | 3000 V | AC DC Converter | Wire Leads | 101 W | Chassis Mount | CE | 50 °C | -25 °C | 37 mm | 1.46 " | 2.05 in | 190 mm | 52 mm | 7.48 " | 89 % | 1 | 24 V | 48 V | 90 VAC | 264 VAC | IP67 | 2.1 A | Constant Current |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.02 | |
| 5 | $ 26.90 | |||
| 10 | $ 26.04 | |||
| 25 | $ 24.94 | |||
Description
General part information
LPC-100 Series
500mA 100 ~ 200V Constant Current LED Driver AC DC Converter Topology 1 Output
Documents
Technical documentation and resources
