6384-0

Active

Pomona Electronics

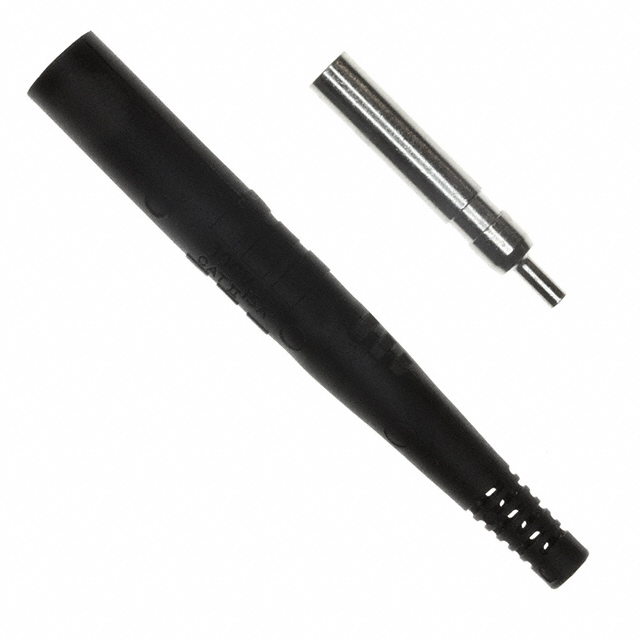

CONN BANANA JACK BLACK

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BANANA JACK BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	6384-0

Body Material	Santoprene® (Thermoplastic Elastomer)
Color	Black
Contact Finish	Nickel
Contact Material	Brass
Gender	Female
Insulation	Sheathed
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-29 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Crimp or Solder
Type	Banana Jack
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Plug/Mating Plug Diameter	Color	Body Material	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Type	Contact Material	Termination	Contact Finish	Insulation
Pomona Electronics 6384-0	-29 °C	135 °C	Free Hanging (In-Line)	Standard Banana	Black	Santoprene® (Thermoplastic Elastomer)	Female	22 AWG	17.5 AWG	Banana Jack	Brass	Crimp or Solder	Nickel	Sheathed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	10 per Bag	1	$ 41.35

General part information

Banana Jack Connector Standard Banana Crimp or Solder Black
