Technical Specifications
Parameters and characteristics for this part
| Specification | MPA206N |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.20 | |
| 10 | $ 13.80 | |||
| 25 | $ 13.65 | |||
Description
General part information

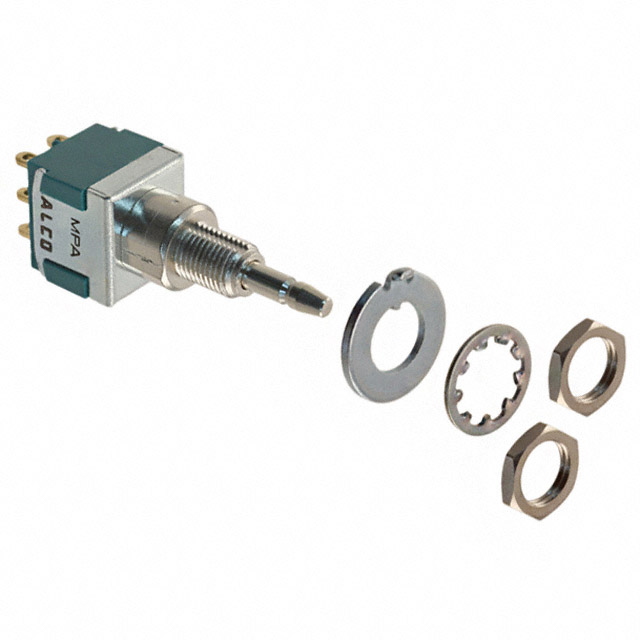

ALCOSWITCH MPA Series
General Purpose Push Button Switch, Double Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Extended Actuator, ALCOSWITCH MPA
