Connectors, Interconnects
776427-2
ActiveTE Connectivity Raychem Cable Protection

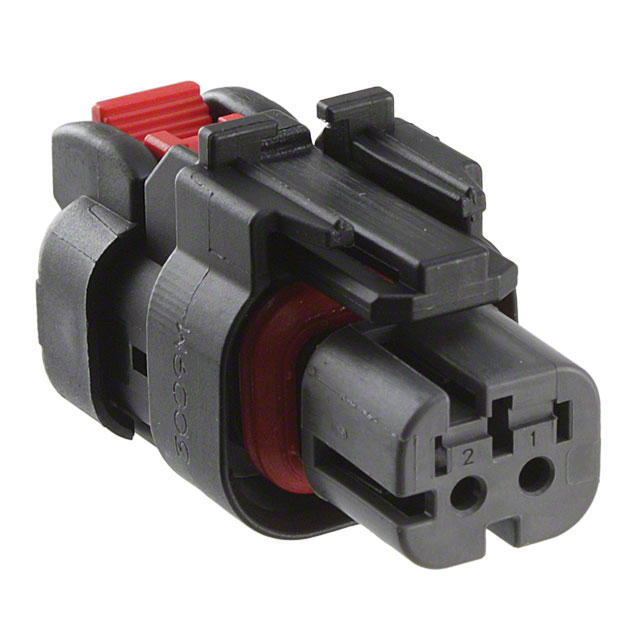

CONN PLUG HSG 2POS 4.50MM
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
776427-2
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG 2POS 4.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 776427-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.177 in |
| Pitch [x] | 4.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.52 | |
| 27 | $ 2.10 | |||
| 108 | $ 1.96 | |||
| 1026 | $ 1.40 | |||
| 5022 | $ 1.24 | |||
Description
General part information
776427 Series
2 Rectangular Connectors - Housings Plug Black 0.177" (4.50mm)
Documents
Technical documentation and resources
No documents available
