H3AKH-1636M

Active

Assmann WSW Components

IDC CBL - HHSC16H/AE16M/HHPK16H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC16H/AE16M/HHPK16H

Technical Specifications

Parameters and characteristics for this part

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Cable Termination	Contact Finish	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length
Assmann WSW Components H3AKH-1636G	Polarizing Key	15 µin	0.38 µm	2	Socket to Plug	IDC	Gold	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded	16	0.05 "	1.27 mm
Assmann WSW Components H3AKH-1618M	Polarizing Key	15 µin	0.38 µm	2	Socket to Plug	IDC	Gold	1.5 ft	457.2 mm	0.1 in	2.54 mm	Unshielded	16	0.05 "	1.27 mm	Multiple Ribbon
Assmann WSW Components H3AKH-1606M	Polarizing Key	15 µin	0.38 µm	2	Socket to Plug	IDC	Gold			0.1 in	2.54 mm	Unshielded	16	0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AKH-1636M	Polarizing Key	15 µin	0.38 µm	2	Socket to Plug	IDC	Gold	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded	16	0.05 "	1.27 mm	Multiple Ribbon
Assmann WSW Components H3AKH-1618G	Polarizing Key	15 µin	0.38 µm	2	Socket to Plug	IDC	Gold	1.5 ft	457.2 mm	0.1 in	2.54 mm	Unshielded	16	0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

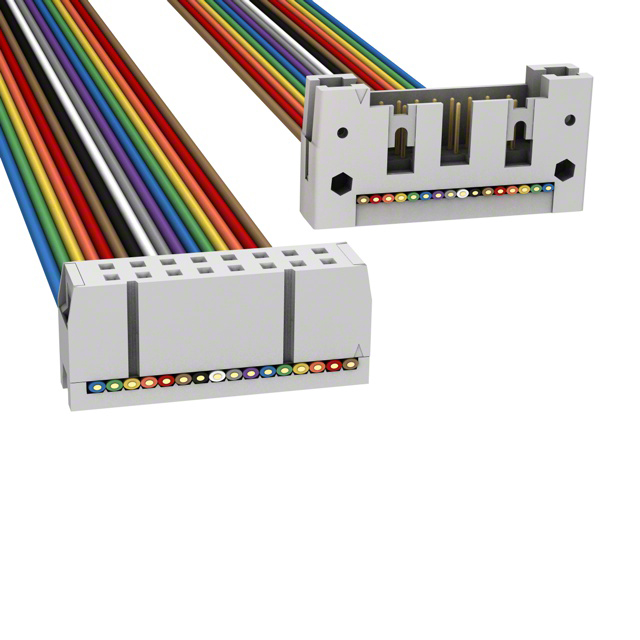

16 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
