62PP037BG31
ActiveEssentra Access Solutions
HOLE PLUG, .375 HOLE, .031-.140
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
62PP037BG31
ActiveEssentra Access Solutions
HOLE PLUG, .375 HOLE, .031-.140
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 62PP037BG31 |
|---|---|
| Color | Natural |
| Flange Diameter | 14.68 mm |
| Flange Diameter [diameter] | 0.578 in |
| Hole Diameter [diameter] | 9.53 mm |
| Hole Diameter [diameter] | 0.375 in |
| Hole Diameter [diameter] | 0.375 in |
| Material | Nylon |
| Panel Thickness [Max] | 0.14 in |
| Panel Thickness [Max] | 3.56 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Type | Body Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.12 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 3000 | $ 0.05 | |||
Description
General part information
62PP037B Series

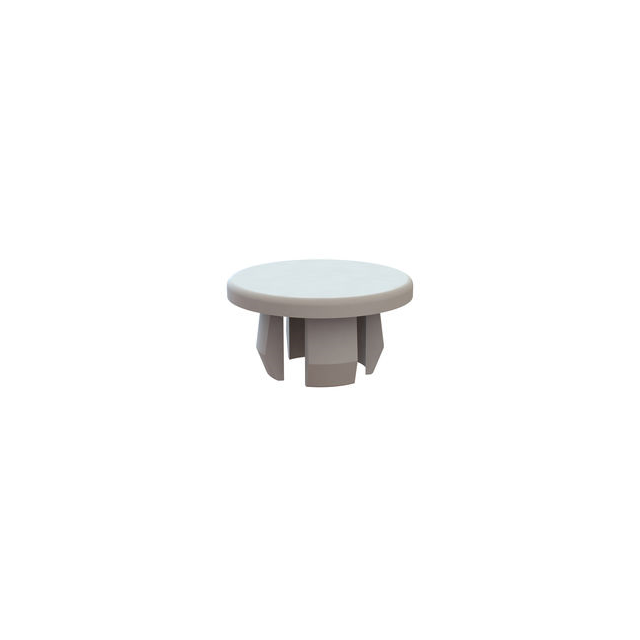

Hole Plug 0.375" (9.53mm) 3/8" Nylon Natural
