STEVAL-IFP006V1
ActiveSTMicroelectronics

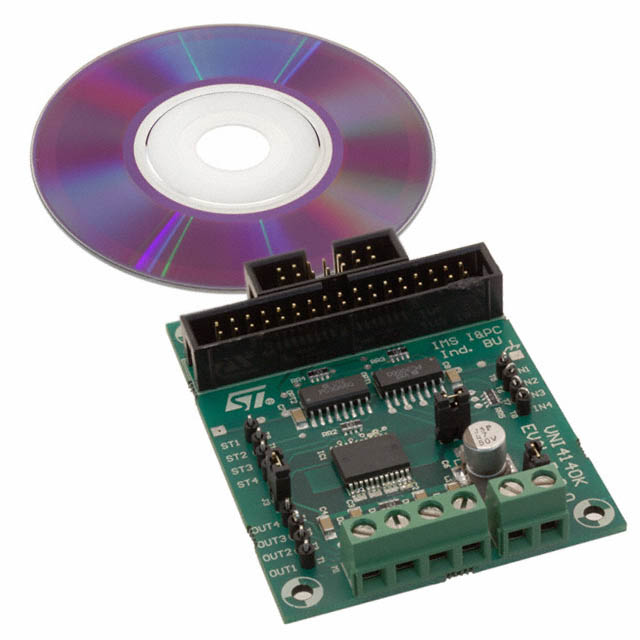

EVAL BOARD FOR VNI4140K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STEVAL-IFP006V1
ActiveSTMicroelectronics
EVAL BOARD FOR VNI4140K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-IFP006V1 | VNI4140 Series |
|---|---|---|
| - | - | |
| Contents | - | Board(s) |
| Current - Output (Max) | - | 700 mA |
| Embedded | False | False |
| Fault Protection | - | Over Temperature, Current Limiting (Fixed) |
| Features | - | Status Flag |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 4 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | 7.5 mm |
| Package / Case | - | 24-PowerBSOP |
| Package / Case | - | 0.295 in |
| Primary Attributes | 4-Channel (Quad) | 4-Channel (Quad) |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 80 mOhm |
| Secondary Attributes | Thermal, Short-Circuit, Undervoltage Protection | Thermal, Short-Circuit, Undervoltage Protection |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | PowerSSO-24 |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | VNI4140 | VNI4140K-32, VNI4140 |
| Voltage - Load | - | 36 V |
| Voltage - Load | - | 10.5 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VNI4140 Series
QUAD HIGH-SIDE SMART-POWER SOLID-STATE RELAY DEMONSTRATION BOARD BASED ON THE VNI4140K-32
| Part | Contents | Utilized IC / Part | Supplied Contents | Embedded | Primary Attributes | Function | Secondary Attributes | Type | Supplier Device Package | Features | Interface | Number of Outputs | Switch Type | Voltage - Supply (Vcc/Vdd) | Input Type | Package / Case [y] | Package / Case | Package / Case [y] | Output Type | Voltage - Load [Max] | Voltage - Load [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Mounting Type | Rds On (Typ) | Output Configuration | Fault Protection | Ratio - Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-IFP019V1 | Board(s) | VNI4140K-32 | Board(s) | 4-Channel (Quad) | High Side Driver (Internal FET) | Short-Circuit, Thermal, Undervoltage Protection | Power Management | ||||||||||||||||||||||
STMicroelectronics VNI4140KTR | PowerSSO-24 | Status Flag | On/Off | 4 | General Purpose | Non-Inverting | 7.5 mm | 24-PowerBSOP | 0.295 in | N-Channel | 36 V | 10.5 V | -40 °C | 125 ¯C | 700 mA | Surface Mount | 80 mOhm | High Side | Current Limiting (Fixed), Over Temperature | 1:1 | |||||||||
STMicroelectronics STEVAL-IFP019V1 | |||||||||||||||||||||||||||||
STMicroelectronics STEVAL-IFP006V1 | VNI4140 | Board(s) | 4-Channel (Quad) | High Side Driver (Internal FET) | Short-Circuit, Thermal, Undervoltage Protection | Power Management | |||||||||||||||||||||||
STMicroelectronics VNI4140KTR | |||||||||||||||||||||||||||||
STMicroelectronics VNI4140KTR |
Description
General part information
VNI4140 Series
VNI4140 High Side Driver (Internal FET) Power Management Evaluation Board
Documents
Technical documentation and resources
