Technical Specifications
Parameters and characteristics for this part
| Specification | SPC574K72E7C6FAY |
|---|---|
| Connectivity | I2C, Ethernet, CANbus, LINbus, SPI, UART/USART, FlexRay |
| Core Processor | e200z4, e200z2 |
| Core Size | 32-Bit Tri-Core |
| Data Converters | 12b SAR, 16b Sigma-Delta |
| EEPROM Size | 64 K |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

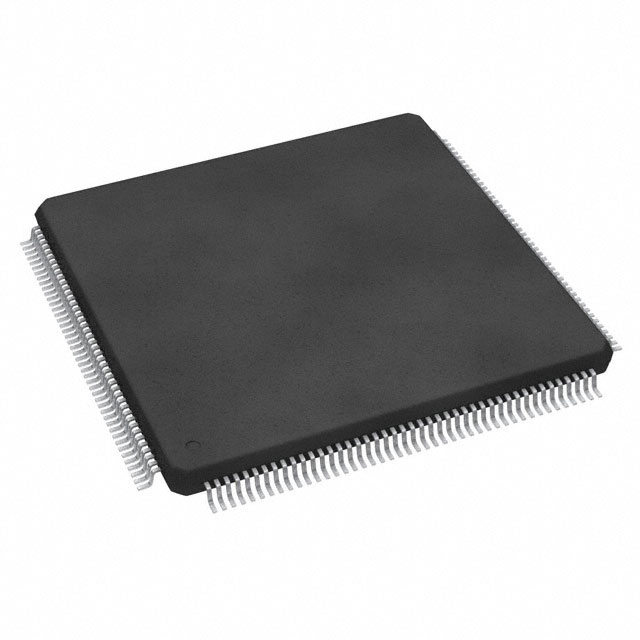

| Package / Case | 176-LQFP Exposed Pad |
| Program Memory Size | 2.5 MB |
| Program Memory Type | FLASH |
| Qualification | AEC-Q100 |
| RAM Size | 64 K |
| Speed | 160 MHz, 80 MHz |
| Supplier Device Package | 176-eLQFP (24x24) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
SPC574KADPT144S Series
32-bit Power Architecture MCU for Automotive Chassis and Safety Applications
| Part | Type | Contents | Utilized IC / Part | Board Type | Grade | Program Memory Size | Data Converters | RAM Size | Connectivity | Oscillator Type | Supplier Device Package | Qualification | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Speed | Mounting Type | Core Size | Core Processor | Program Memory Type | EEPROM Size | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Core Size [custom] | Peripherals | Number of I/O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | MCU 32-Bit | Board(s) | SPC574K | Evaluation Platform | ||||||||||||||||||||||
STMicroelectronics | Automotive | 2.5 MB | 12b SAR 16b Sigma-Delta | 64 K | CANbus Ethernet FlexRay I2C LINbus SPI UART/USART | Internal | 176-eLQFP (24x24) | AEC-Q100 | 5.5 V | 3 V | 80 MHz 160 MHz | Surface Mount | 32-Bit Tri-Core | e200z2 e200z4 | FLASH | 64 K | 176-LQFP Exposed Pad | -40 °C | 125 °C | |||||||
STMicroelectronics | 1.5 MB | 96 K | CANbus FlexRay LINbus SPI UART/USART | Internal | 100-eTQFP (14x14) | 5.25 V | 3.135 V | 140 MHz | Surface Mount | e200z4 | FLASH | 64 K | 100-TQFP Exposed Pad | -40 °C | 125 °C | 32-Bit Dual-Core | DMA LVD POR WDT | 64 | ||||||||
STMicroelectronics | Automotive | 2.5 MB | 12b SAR 16b Sigma-Delta | 64 K | CANbus Ethernet FlexRay I2C LINbus SPI UART/USART | Internal | 144-eTQFP (20x20) | AEC-Q100 | 5.5 V | 3 V | 80 MHz 160 MHz | Surface Mount | 32-Bit Tri-Core | e200z2 e200z4 | FLASH | 64 K | 144-TQFP Exposed Pad | -40 °C | 125 °C | |||||||
STMicroelectronics | MCU 32-Bit | Board(s) | SPC574Sx | Evaluation Platform | ||||||||||||||||||||||
STMicroelectronics | Automotive | 2.5 MB | 12b SAR 16b Sigma-Delta | 64 K | CANbus Ethernet FlexRay I2C LINbus SPI UART/USART | Internal | 176-eLQFP (24x24) | AEC-Q100 | 5.5 V | 3 V | 80 MHz 160 MHz | Surface Mount | 32-Bit Tri-Core | e200z2 e200z4 | FLASH | 64 K | 176-LQFP Exposed Pad | -40 °C | 125 °C | |||||||
STMicroelectronics | MCU 32-Bit | Board(s) | SPC574Sx | Evaluation Platform |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 16.88 | |
Description
General part information
SPC574KADPT144S Series
The SPC574Sx is a family of next generation microcontrollers built on the Power Architecture embedded category.
The SPC574Sx family of 32-bit microcontrollers is the latest achievement in integrated automotive application controllers. It belongs to an expanding family of automotive-focused products designed to address the next wave of Chassis and Safety electronics applications within the vehicle. The advanced and cost-efficient host processor core of this automotive controller family complies with the Power Architecture embedded category and only implements the VLE (variable-length encoding) APU, providing improved code density. It operates at speeds of up to 140 MHz and offers high performance processing optimized for low power consumption. It capitalizes on the available development infrastructure of current Power Architecture devices and is supported with software drivers, operating systems and configuration code to assist with users implementations.
