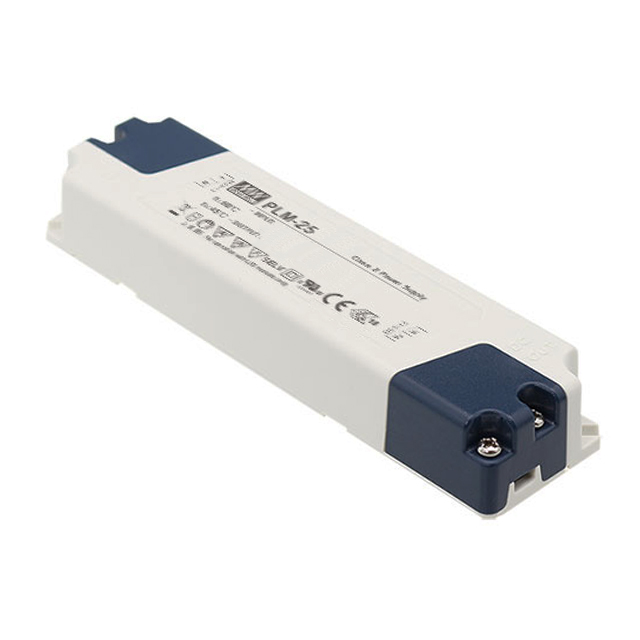

PLM-25-700

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 21-36V 700MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 21-36V 700MA

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Efficiency	Voltage - Isolation	Features	Termination Style	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Topology	Number of Outputs	Ratings	Mounting Type	Type	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. PLM-25E-700	-30 ░C	45 °C	CB CCC CE ENEC	700 mA	180 VAC	25 W	85 %	3750 V	SCP	Terminal Block	295 VAC	1.5 in	5.71 in	0.87 in	145 mm	38 mm	22 mm	AC DC Converter	1	IP30	Chassis Mount	Constant Current	21 V	36 V
MEAN WELL USA Inc. PLM-25-500	-30 ░C	45 °C	CB CE cURus ENEC	500 mA	110 VAC	25 W	86 %	3750 V	SCP	Terminal Block	295 VAC	1.5 in	5.71 in	0.87 in	145 mm	38 mm	22 mm	AC DC Converter	1	IP30	Chassis Mount	Constant Current	30 V	50 V
MEAN WELL USA Inc. PLM-25-700	-30 ░C	45 °C	CB CE cURus ENEC	700 mA	110 VAC	25 W	86 %	3750 V	SCP	Terminal Block	295 VAC	1.5 in	5.71 in	0.87 in	145 mm	38 mm	22 mm	AC DC Converter	1	IP30	Chassis Mount	Constant Current	21 V	36 V
MEAN WELL USA Inc. PLM-25E-350	-30 ░C	45 °C	CB CCC CE ENEC	350 mA	180 VAC	25 W	86 %	3750 V	SCP	Terminal Block	295 VAC	1.5 in	5.71 in	0.87 in	145 mm	38 mm	22 mm	AC DC Converter	1	IP30	Chassis Mount	Constant Current	42 V	72 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

700mA 21 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
