Technical Specifications
Parameters and characteristics for this part
| Specification | 61668-4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.94 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.85 | |||
| 2500 | $ 0.83 | |||
| Tape & Reel (TR) | 6000 | $ 0.75 | ||
| 12000 | $ 0.72 | |||
Description
General part information

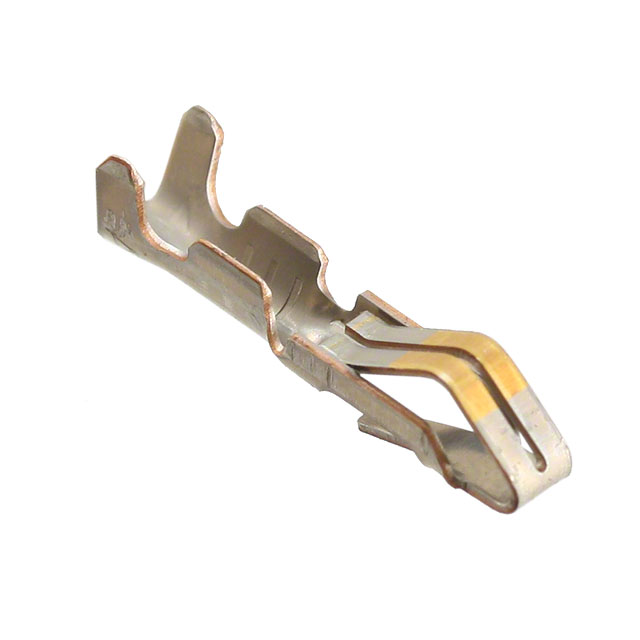

UTILUX CR Series
Hermaphroditic Contact, Gold (Au), Snap-In Contact Retention, Discrete Wire, 24 – 18 AWG, .2 – .8 mm² Wire, Crimp, Phosphor Bronze, Signal, UTILUX CR
