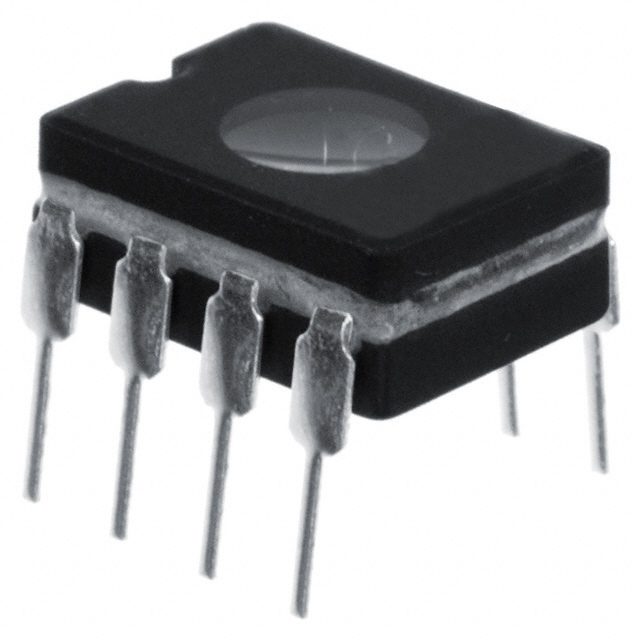

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC12C508/JW | PIC12C508 Series |
|---|---|---|
| Core Processor | PIC | PIC |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of I/O | 5 | 5 |
| Operating Temperature [Max] | 70 °C | 70 - 125 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | - | 5.3 mm |
| Package / Case | - | 8-SOIC, 8-DIP, 8-VDFN Exposed Pad |
| Package / Case | - | 0.209 - 3.9 in |
| Package / Case | - | 7.62 mm |
| Peripherals | POR, WDT | POR, WDT |
| Program Memory Size | 768 B | 768 B |
| Program Memory Type | UV, EPROM | OTP, UV, EPROM |
| RAM Size | 25 x 8 | 25 x 8 |
| Speed | 4 MHz | 4 MHz |
| Supplier Device Package | 8-CDIP | 8-SOIJ, 8-PDIP, 8-SOIC, 8-CDIP, 8-DFN-S (6x5) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V | 2.5 - 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Quest Components | N/A | 1 | $ 37.96 | |
| 3 | $ 3.48 | |||
PIC12C508 Series
IC MCU 8BIT 768B OTP 8SOIJ
| Part | Mounting Type | Supplier Device Package | Core Size | Program Memory Type | Speed | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Processor | Peripherals | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [custom] | Package / Case | Package / Case | RAM Size | Program Memory Size | Number of I/O | Oscillator Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology PIC12C508AT-04/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 70 °C | 0 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508-04E/P | Through Hole | 8-PDIP | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 8-DIP | 0.3 in | 25 x 8 | 768 B | 5 | Internal | 7.62 mm | |
Microchip Technology PIC12C508-04I/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 85 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508-04/P | Through Hole | 8-PDIP | 8-Bit | OTP | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 70 °C | 0 °C | 8-DIP | 0.3 in | 25 x 8 | 768 B | 5 | Internal | 7.62 mm | |
Microchip Technology PIC12C508AT-04I/SN | Surface Mount | 8-SOIC | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 8-SOIC | 3.9 mm | 25 x 8 | 768 B | 5 | Internal | ||
Microchip Technology PIC12C508A-04/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 70 °C | 0 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508/JW | Through Hole | 8-CDIP | 8-Bit | EPROM, UV | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 70 °C | 0 °C | 25 x 8 | 768 B | 5 | Internal | ||||
Microchip Technology PIC12C508A-04E/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508-04/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 70 °C | 0 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508-04E/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508A-04/P | Through Hole | 8-PDIP | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 70 °C | 0 °C | 8-DIP | 0.3 in | 25 x 8 | 768 B | 5 | Internal | 7.62 mm | |
Microchip Technology PIC12C508AT-04/SN | Surface Mount | 8-SOIC | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 70 °C | 0 °C | 8-SOIC | 3.9 mm | 25 x 8 | 768 B | 5 | Internal | ||
Microchip Technology PIC12C508T-04E/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508AT-04E/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508A/JW | Through Hole | 8-CDIP | 8-Bit | EPROM, UV | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 70 °C | 0 °C | 25 x 8 | 768 B | 5 | Internal | ||||
Microchip Technology PIC12C508A-04I/P | Through Hole | 8-PDIP | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 8-DIP | 0.3 in | 25 x 8 | 768 B | 5 | Internal | 7.62 mm | |
Microchip Technology PIC12C508A-04I/SN | Surface Mount | 8-SOIC | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 8-SOIC | 3.9 mm | 25 x 8 | 768 B | 5 | Internal | ||
Microchip Technology PIC12C508A-04E/SN | Surface Mount | 8-SOIC | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 8-SOIC | 3.9 mm | 25 x 8 | 768 B | 5 | Internal | ||
Microchip Technology PIC12C508AT-04I/MF | Surface Mount | 8-DFN-S (6x5) | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 8-VDFN Exposed Pad | 25 x 8 | 768 B | 5 | Internal | |||
Microchip Technology PIC12C508A-04I/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508T-04I/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 85 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508A-04I/MF | Surface Mount | 8-DFN-S (6x5) | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 8-VDFN Exposed Pad | 25 x 8 | 768 B | 5 | Internal | |||
Microchip Technology PIC12C508A-04E/P | Through Hole | 8-PDIP | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 125 °C | -40 °C | 8-DIP | 0.3 in | 25 x 8 | 768 B | 5 | Internal | 7.62 mm | |
Microchip Technology PIC12C508T-04/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 2.5 V | PIC | POR, WDT | 70 °C | 0 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal | |
Microchip Technology PIC12C508AT-04I/SM | Surface Mount | 8-SOIJ | 8-Bit | OTP | 4 MHz | 5.5 V | 3 V | PIC | POR, WDT | 85 °C | -40 °C | 5.3 mm | 8-SOIC | 0.209 in | 25 x 8 | 768 B | 5 | Internal |
Description
General part information
PIC12C508 Series
This powerful (1µsecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 8-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.
