Specification	644617-6

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	150 µin
Contact Finish Thickness - Post	150 µin
Contact Length - Mating	0.45 in
Contact Length - Post	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Keying Slot, Board Guide
Insulation Color	Natural
Insulation Height	0.3 in
Insulation Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V

644617 Series

Part	Style	Contact Material	Contact Type	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Shrouding	Insulation Material	Number of Rows	Number of Positions	Current Rating	Insulation Height	Number of Positions Loaded	Pitch - Mating	Contact Finish - Post	Insulation Color	Connector Type	Contact Finish - Mating	Contact Length - Post	Voltage Rating	Features	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Fastening Type	Contact Shape	Contact Length - Mating	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 644617-4	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	4	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin-Lead	Natural	Header	Tin-Lead	0.125 in	600 V	Board Guide	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial

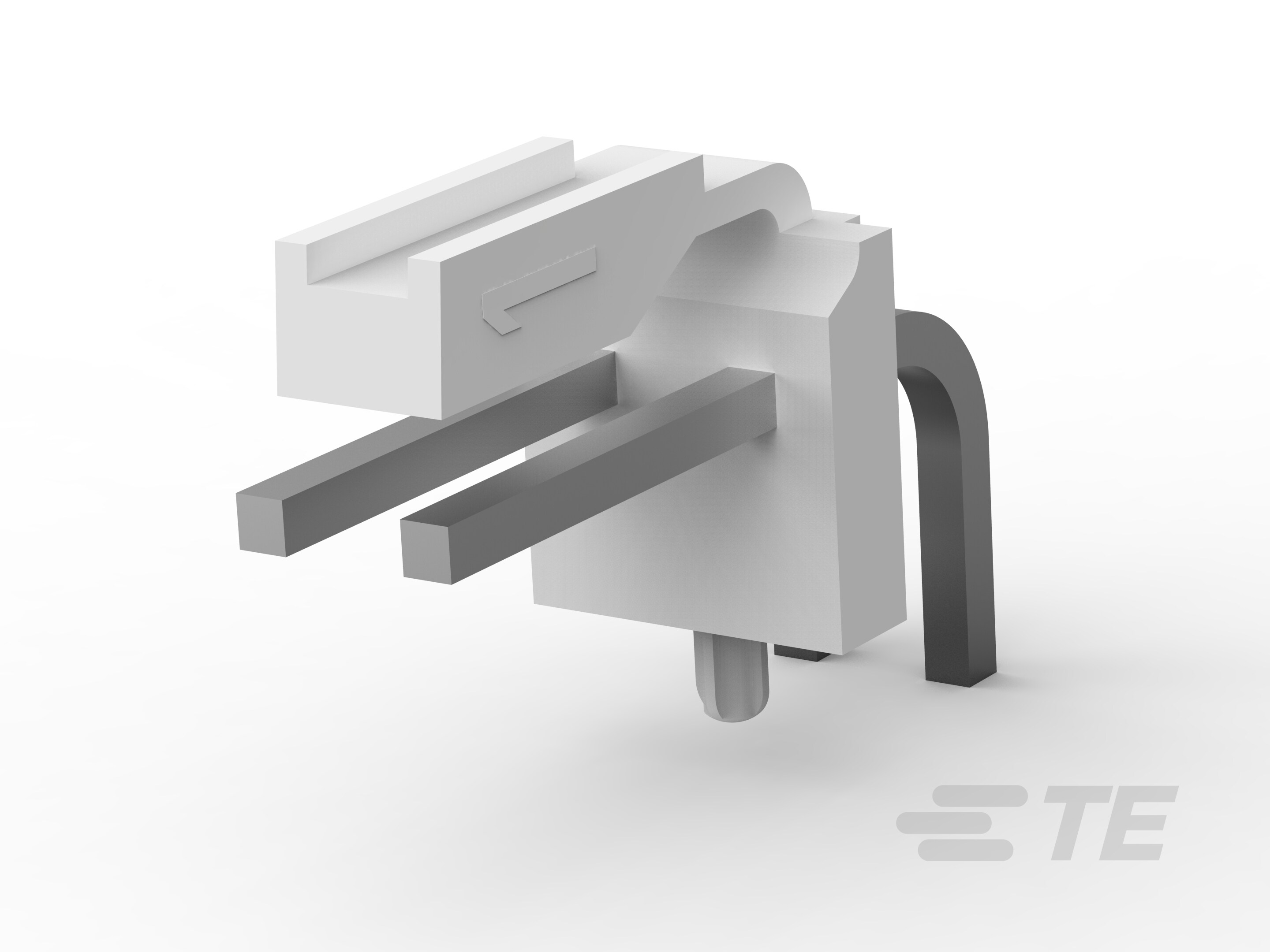

TE Connectivity AMP Connectors 3-644617-2	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	2	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin	Natural	Header	Tin	0.125 in	600 V	Board Guide	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 4-644617-0	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	10	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin	Natural	Header	Tin	0.125 in	600 V	Board Guide Keying Slot	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 644617-8	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	8	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin-Lead	Natural	Header	Tin-Lead	0.125 in	600 V	Board Guide Keying Slot	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial

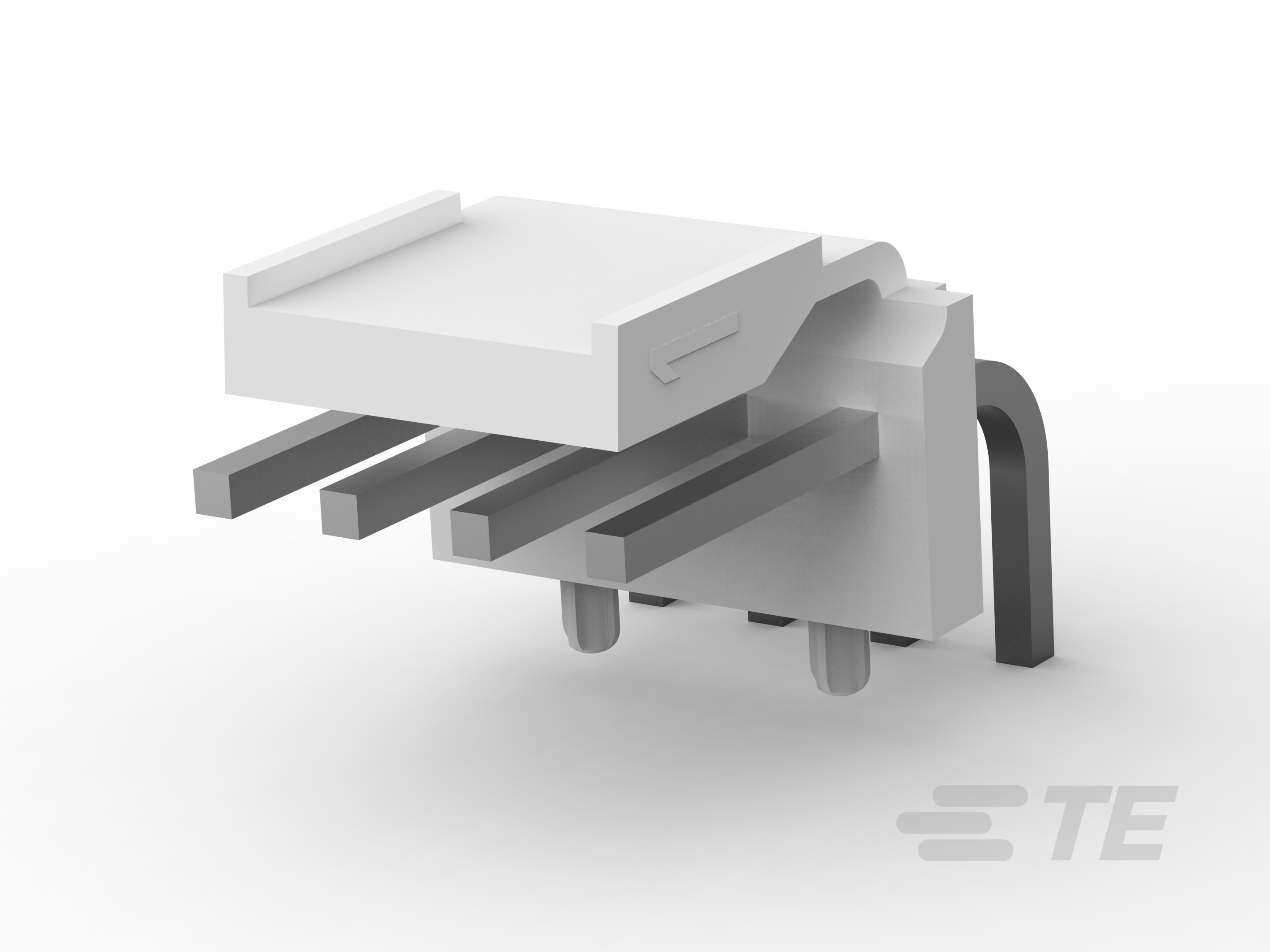

TE Connectivity AMP Connectors 3-644617-4	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	4	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin	Natural	Header	Tin	0.125 in	600 V	Board Guide	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 4-644617-8	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	18	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin	Natural	Header	Tin	0.125 in	600 V	Board Guide Keying Slot	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 644617-6	Board Cable/Wire	Copper Alloy	Male Pin	Solder	-55 °C	105 °C	Shrouded - 1 Wall	Glass Filled Thermoplastic	1	6	Varies by Wire Gauge	0.3 in	All	0.156 in	Tin-Lead	Natural	Header	Tin-Lead	0.125 in	600 V	Board Guide Keying Slot	UL94 V-0	Right Angle Through Hole	150 µin	Friction Lock	Square	0.45 in	150 µin	General Purpose Industrial
