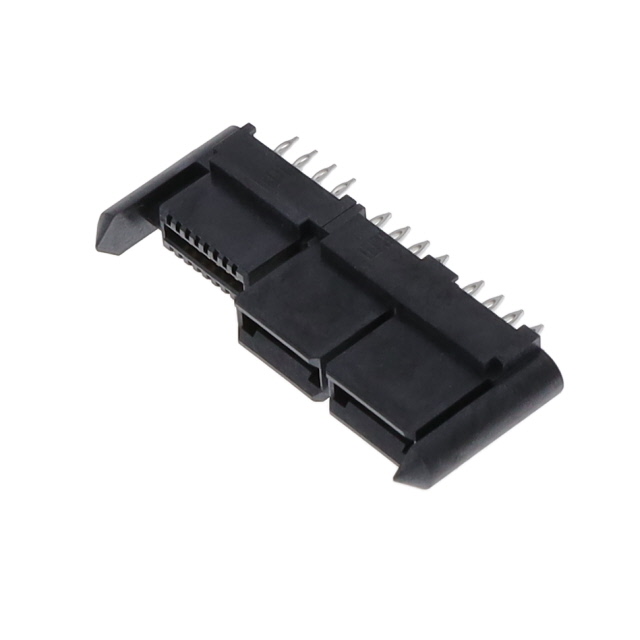

LPHS-04-16-L-VP1-GP

Active

Samtec Inc.

.050" EXTREME LPHPOWER 30 AMP S

Search across all available documentation for this part.

Active

Samtec Inc.

.050" EXTREME LPHPOWER 30 AMP S

Technical Specifications

Parameters and characteristics for this part

Specification	LPHS-04-16-L-VP1-GP

Color	Black
Connector Style	LPHPower
Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical [custom]	16
Contact Layout, Typical [custom]	4
Features	Guide Pin, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Press-Fit
Voltage Rating	250 VDC

Part	Voltage Rating	Features	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish	Mounting Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions Loaded	Material Flammability Rating	Termination	Connector Style	Number of Positions
Samtec Inc. LPHS-04-16-L-RT1-GP	250 VDC	Board Guide Guide Pin	Outer Shroud Contacts Socket	Black	10 Áin	0.25 Ám	-40 °C	105 ░C	2	Gold	Through Hole Right Angle	16	4	All	UL94 V-0	Solder	LPHPower	20
Samtec Inc. LPHS-04-16-L-VP1-GP	250 VDC	Board Guide Guide Pin	Outer Shroud Contacts Socket	Black	10 Áin	0.25 Ám	-40 °C	105 ░C	2	Gold	Through Hole	16	4	All	UL94 V-0	Press-Fit	LPHPower	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Connector Socket, Outer Shroud Contacts Through Hole Black LPHPower
