PPTC132LJBN-RC

Active

Sullins Connector Solutions

CONN HDR 26POS 0.1 TIN PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 26POS 0.1 TIN PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC132LJBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions	Connector Type	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Contact Material	Current Rating (Amps)	Insulation Material	Contact Length - Post
Sullins Connector Solutions PPTC132LFBN	26	Header	Through Hole	0.335 "	8.51 mm	Square	2.54 mm	0.1 in	250 VDC	Black	2	0.1 in	2.54 mm	Tin	Female Socket	Push-Pull	Solder	-40 °C	105 ░C	All	3.2 mm	0.126 in	UL94 V-0	Phosphor Bronze	3 A	Polyester
Sullins Connector Solutions PPTC132LJBN-RC	26	Header	Through Hole Right Angle			Square	2.54 mm	0.1 in	250 VDC	Black	2	0.1 in	2.54 mm	Tin	Female Socket	Push-Pull	Solder	-40 °C	105 ░C	All	3.15 mm		UL94 V-0	Phosphor Bronze	3 A	Polyester	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

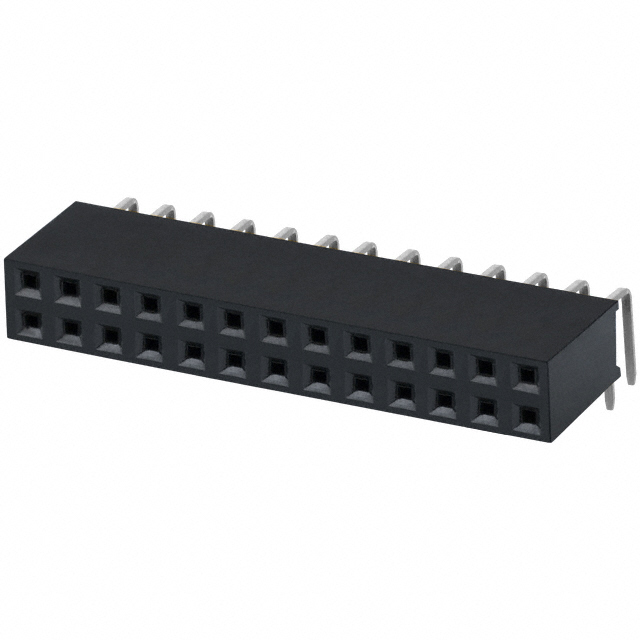

26 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
