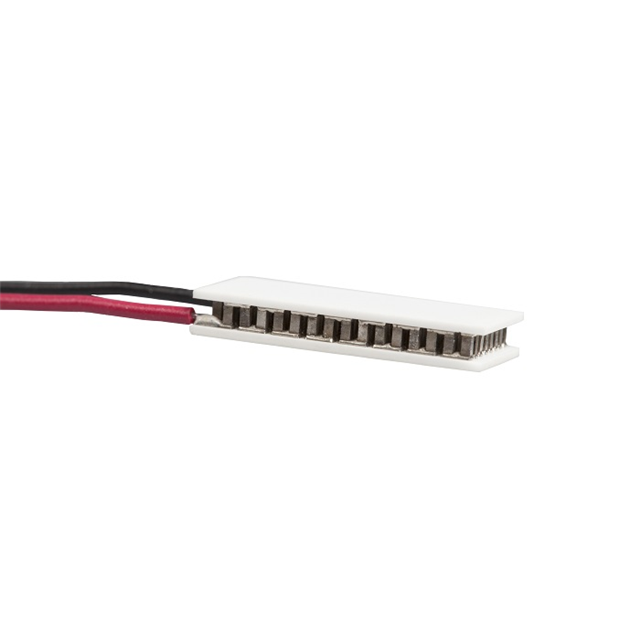

APHC-070-20-E

Active

European Thermodynamics Ltd

TE HIGH TEMP, CYC, 70 COUPLE, 20

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

TE HIGH TEMP, CYC, 70 COUPLE, 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 19 A

Technical documentation and resources

No documents available

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max	Height [z]	Delta Tmax @ Th	Current - Max [Max]	Resistance	Voltage - Max [Max]
European Thermodynamics Ltd APHC-070-20-E	Rectangular	54 mm	36 mm	7.7 V	3.1 mm	58 °C	19 A
European Thermodynamics Ltd APHC-07104-S		28 mm	23.5 mm		3.33 mm	65 °C	3.7 A	1.8 Ohms	8.2 V
European Thermodynamics Ltd APHC-161-12-13-S		40 mm	40 mm		3.6 mm	68 °C	5.13 A	3 Ohms	20.1 V
European Thermodynamics Ltd APHC-287-10-13-E		40 mm	40 mm		3.6 mm	72 °C	3.6 A	7.7 Ohms
European Thermodynamics Ltd APHC-12704-S		34 mm	30 mm		3.63 mm	66 °C	3.7 A	3.2 Ohms	14.7 V
European Thermodynamics Ltd APHC-12708-S	Rectangular	44 mm	40 mm		3.5 mm	66 °C	7.4 A	1.6 Ohms	14.7 V
European Thermodynamics Ltd APHC-161-12-15-S		40 mm	40 mm		3.6 mm	69 °C	4.53 A	3.4 Ohms	20.1 V
