9050-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.

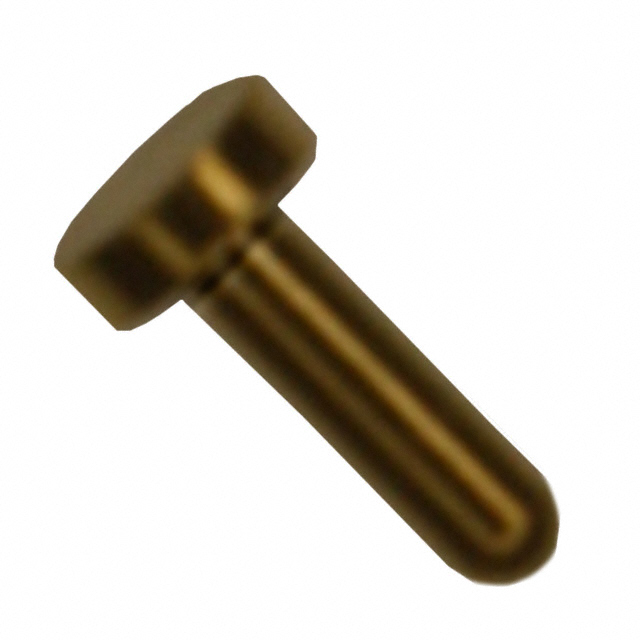

CONN PC PIN CIRC 0.012DIA GOLD
9050-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.012DIA GOLD
Description
General part information
9050-0 Series
PC Pin Terminal Connector Through Hole Gold 0.012" (0.30mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 9050-0-00-15-00-00-33-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.025 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.042 in |
| Length - Overall | 0.05 in |
| Mounting Hole Diameter | 0.016 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.012 in |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
