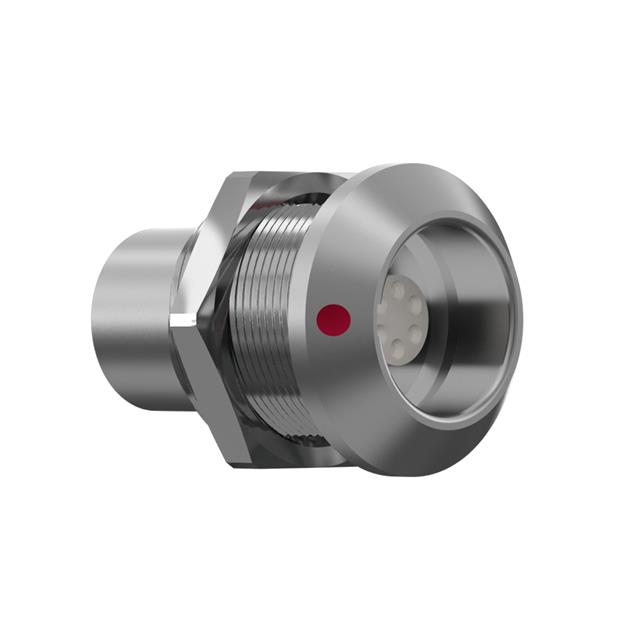

Specification	GL2K0C-P14LFG0-0000

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	14
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	0 °
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	2
Shell Size - Insert	2
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	366 V

GL2K0C-P Series

Part	Contact Finish - Mating	Shell Material	Color	Mounting Type	Shell Finish	Voltage Rating	Contact Material	Mounting Feature	Ingress Protection IP Rating	Ingress Protection Description	Insert Material	Current Rating	Primary Material	Fastening Type	Features	Number of Positions	Shell Size - Insert	Shell Size - Insert	Termination	Shielding	Applications	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)
ODU GL2K0C-P02LTS0-0000	Gold	Brass	Silver	Panel Mount	Chrome Nickel	600 V	Brass	Bulkhead Rear Side Nut	IP68	Dust Tight Waterproof	PEEK Polyetheretherketone	24 A	Metal	Push-Pull	Ground	2	2	2	Solder Cup	Shielded	Industrial Medical Military Testing Equipment & Measurement	Female Sockets Receptacle	120 °C	-40 °C
ODU GL2K0C-P04LPH0-0000	Gold	Brass	Silver	Panel Mount	Chrome Nickel	450 VAC	Brass	Bulkhead Rear Side Nut	IP68	Dust Tight Waterproof	PEEK Polyetheretherketone	12 A	Metal	Push-Pull	Ground	4	2	2	Solder Cup	Shielded	Industrial Medical Military Testing Equipment & Measurement	Female Sockets Receptacle	120 °C	-40 °C
ODU GL2K0C-P14LFG0-0000	Gold	Brass	Silver	Panel Mount	Chrome Nickel	366 V	Brass	Bulkhead Rear Side Nut	IP68	Dust Tight Waterproof	PEEK Polyetheretherketone	7.5 A	Metal	Push-Pull	Ground	14	2	2	Solder Cup	Shielded	Industrial Medical Military Testing Equipment & Measurement	Female Sockets Receptacle	120 °C	-40 °C
ODU GL2K0C-P05LPH0-0000	Gold	Brass	Silver	Panel Mount	Chrome Nickel	600 V	Brass	Bulkhead Rear Side Nut	IP68	Dust Tight Waterproof	PEEK Polyetheretherketone	12 A	Metal	Push-Pull	Ground	5	2	2	Solder Cup	Shielded	Industrial Medical Military Testing Equipment & Measurement	Female Sockets Receptacle	120 °C	-40 °C
ODU GL2K0C-P18LFG0-0000	Gold	Brass	Silver	Panel Mount	Chrome Nickel	300 VAC/DC	Brass	Bulkhead Rear Side Nut	IP68	Dust Tight Waterproof	PEEK Polyetheretherketone	7.5 A	Metal	Push-Pull	Ground	18	2	2	Solder Cup	Shielded	Industrial Medical Military Testing Equipment & Measurement	Female Sockets Receptacle	120 °C	-40 °C
